Features

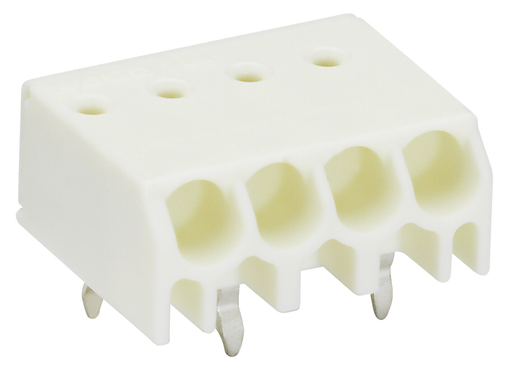

• PCB terminal blocks with PUSH WIRE® connection
• Push-in termination of solid conductors – low insertion forces
• Just 6.6 mm tall
• Conductor removal via disconnection tool or by twist & pull

Approvals

• DEKRA Certification B.V., AOC, 2226904.01-AOC, EN 60998
• Underwriters Laboratories Inc., UL, E45172, UL 1059

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 3 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 6 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 6 A

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Operating tool
• Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 7

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 25.4 mm / 1 inch
• Height: 10.1 mm / 0.398 inch
• Height from the surface: 6.6 mm / 0.26 inch
• Depth: 12.5 mm / 0.492 inch
• Solder pin length: 3.5 mm
• Solder pin dimensions: 0.35 x 0.9 mm
• Drilled hole diameter with tolerance: 1.1 (-0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (staggered)
• Number of solder pins per potential: 1

Material Data

• Color: White
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Copper alloy
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 1.919 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4055143349925
• Customs tariff number Sales Organisation Germany: 85369010000
