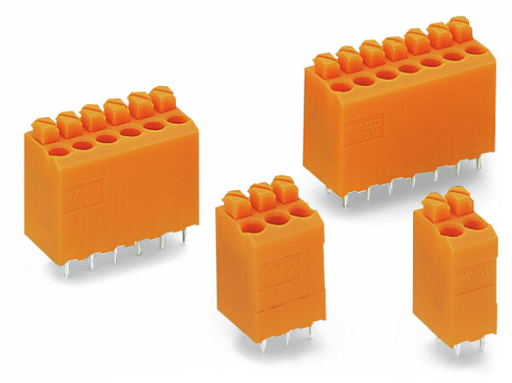

WAGO 735-122

735-122 WAGO 735-122

WAGO 735-122
Part # 735-122
Manufacturer WAGO
GTIN 4044918792561
Condition New
Price: $ 0.75
Qty
17 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB TERM BLK 3.81MM ORANGE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block 2 solder pins / pole in line 2 pole

Features

  • Compact PCB terminal blocks with push-buttons and PUSH WIRE® connection
  • Top-of-unit, push-button actuation and conductor termination save space on the PCB
  • Push-in termination of solid conductors
  • Terminal blocks can be arranged side-by-side without loss of poles.

Approvals

  • DEKRA Certification B.V., CCA, 2160584.30, EN 60947
  • DEKRA Certification B.V., CSA, 18677-47, C22.2 No. 158
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • UL International Germany GmbH, UL, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NTR NL-7132, EN 60947
  • DEKRA Certification B.V., CCA, 2149549.01, EN 60998

Specifications

Notes

  • Variants:: Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Push-button
  • Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 1 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1 mm²
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Conductor connection direction to PCB: 90 °
  • Pole No.: 2

Physical Data

  • Pin spacing: 3.81 mm / 0.15 inch
  • Width: 7.62 mm / 0.3 inch
  • Height: 21.9 mm / 0.862 inch
  • Height from the surface: 18.4 mm / 0.724 inch
  • Depth: 10.8 mm / 0.425 inch
  • Solder pin length: 3.5 mm
  • Solder pin dimensions: 0.4 x 0.9 mm
  • Drilled hole diameter with tolerance: 1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Orange
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.021 MJ
  • Weight: 1.611 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4044918792561
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
