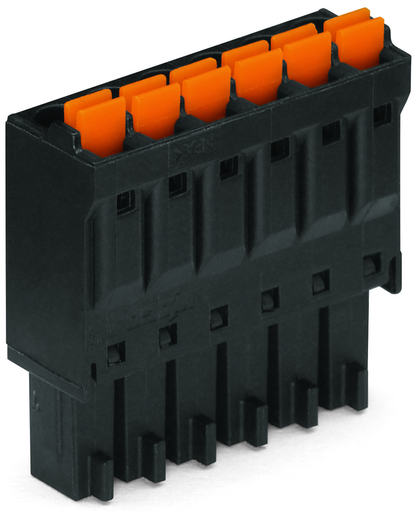

Features

• Female connectors terminate both solid and ferruled conductors via push-in termination
• Integrated push-buttons provide convenient, tool-free operation
• Ultra-low profile of just 7.8 mm for conductor cross-section up to 1.5 mm²
• With coding fingers and test points

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 2198681.01, EN 61984
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL-7604, EN 61984

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 160 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 8 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 150 V
• Rated current UL (Use Group B): 8 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Pole No.: 5
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 18.2 mm / 0.717 inch
• Height: 7.8 mm / 0.307 inch
• Depth: 23 mm / 0.906 inch

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: No

Material Data

• Color: Black
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.040 MJ
• Weight: 2.940 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454858735
• Customs tariff number Sales Organisation Germany: 85366990990
