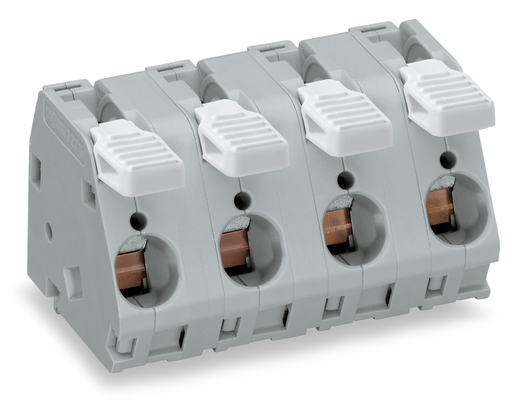

WAGO 2716-208

2716-208 WAGO 2716-208

WAGO 2716-208
Part # 2716-208
Condition New
Price: $ 19.22

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block

Features

  • High-current PCB terminal strips with lever-actuated CAGE CLAMP® connection
  • Tool-free termination – fingers open/close levers
  • Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
  • Four solder pins per contact point provide high mechanical stability
  • 600 V UL for 15 mm pin spacing
  • Pin and dimensions compatible to high-current, screw-type terminal blocks

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7131, EN 60947
  • DEKRA Certification B.V., CSA, 1132097, C22.2 No. 158
  • DEKRA Certification B.V., ENEC, 2160584.29, EN 60947
  • DEKRA Certification B.V., CSA, 1132097, C22.2
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 76 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 65 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 65 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Lever
  • Solid conductor: 1.5 … 16 mm² / 16 … 6 AWG
  • Fine-stranded conductor: 1.5 … 16 mm² / 16 … 6 AWG
  • Fine-stranded conductor; with insulated ferrule: 1.5 … 10 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 1.5 … 10 mm²
  • Strip length: 12 … 13 mm / 0.47 … 0.51 inch
  • Conductor connection direction to PCB: 30 °
  • Pole No.: 8

Physical Data

  • Pin spacing: 15 mm / 0.591 inch
  • Width: 116.5 mm / 4.587 inch
  • Height: 33.3 mm / 1.311 inch
  • Height from the surface: 28.8 mm / 1.134 inch
  • Depth: 30 mm / 1.181 inch
  • Solder pin length: 4.5 mm
  • Solder pin dimensions: 0.95 x 1.2 mm
  • Drilled hole diameter with tolerance: 1.6 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 4

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 1.655 MJ
  • Weight: 86.338 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454739478
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
