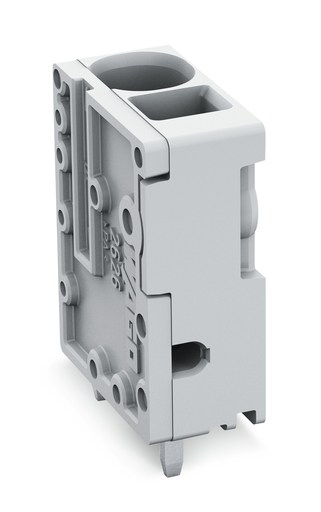

WAGO 2626-3101

2626-3101 WAGO 2626-3101

WAGO 2626-3101
Part # 2626-3101
Condition New
Price: $ 1.53

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block

Features

  • PCB terminal blocks with Push-in CAGE CLAMP® connection
  • Push-in termination of solid and ferruled conductors
  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry

Approvals

  • Underwriters Laboratories Inc., cURus, E45172, UL 1059
  • DEKRA Certification B.V., CB, NL-64739, IEC 60947-7-4
  • DEKRA Certification B.V., CSA, 70146882, C22.2
  • Underwriters Laboratories Inc., cURus, E45172, C22.2 No. 158
  • DEKRA Certification B.V., KEMA/KEUR, 71-113203, EN 60947-7-4

Specifications

Notes

  • Note: The inherent stability of a single-pole PCB terminal block is less than that of a multipole terminal strip. It is therefore necessary for the customer to ensure, for example by additional support, short interception of the connected conductor and corresponding handling instructions for actuation, that this terminal block is protected against excessive mechanical stress, for example torsional or bending stress, during conductor connection and in use.
  • Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 48 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 38 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 38 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 38 A
  • Rated voltage CSA (Use Group C): 1000 V
  • Rated current CSA (Use Group C): 38 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 6 mm²
  • Fine-stranded conductor; with twin ferrule: 0.25 … 2.5 mm²
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Conductor connection direction to PCB: 90 °
  • Pole No.: 1

Physical Data

  • Pin spacing: 7.5 mm / 0.295 inch
  • Width: 9.3 mm / 0.366 inch
  • Height: 28.2 mm / 1.11 inch
  • Height from the surface: 24.2 mm / 0.953 inch
  • Depth: 18.5 mm / 0.728 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 1.5 x 1 mm
  • Drilled hole diameter with tolerance: 2 (+0.1) mm

Mechanical Data

  • Mounting type: Feed-through mounting

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 4.514 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143587266
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
