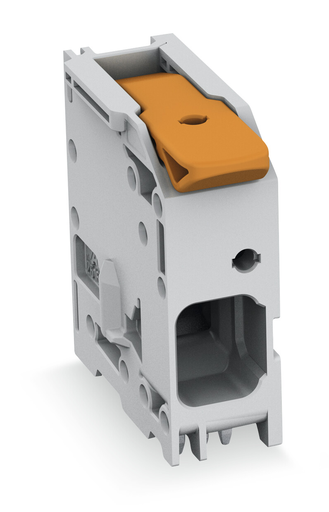

WAGO 2616-1101

2616-1101 WAGO 2616-1101

WAGO 2616-1101
Part # 2616-1101
Condition New
Price: $ 3.24

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block

Features

  • PCB terminal blocks with lever-actuated Push-in CAGE CLAMP® connection
  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-110774, EN 60947-7-4
  • DEKRA Certification B.V., CSA, 70154737, C22.2
  • Underwriters Laboratories Inc., cURus, E45172, C22.2 No. 158

Specifications

Notes

  • Note: The inherent stability of a single-pole PCB terminal block is less than that of a multipole terminal strip. It is therefore necessary for the customer to ensure, for example by additional support, short interception of the connected conductor and corresponding handling instructions for actuation, that this terminal block is protected against excessive mechanical stress, for example torsional or bending stress, during conductor connection and in use.
  • Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 76 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 78 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 78 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 72 A
  • Rated voltage CSA (Use Group C): 1000 V
  • Rated current CSA (Use Group C): 72 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Lever
  • Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
  • Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
  • Fine-stranded conductor; with twin ferrule: 0.75 … 6 mm²
  • Strip length: 18 … 20 mm / 0.71 … 0.79 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 1

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 12.8 mm / 0.504 inch
  • Height: 37.2 mm / 1.465 inch
  • Height from the surface: 33.2 mm / 1.307 inch
  • Depth: 32 mm / 1.26 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 1.2 x 1.2 mm
  • Drilled hole diameter with tolerance: 1.7 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 6

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Color of actuator: Orange
  • Weight: 10.785 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143692762
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
