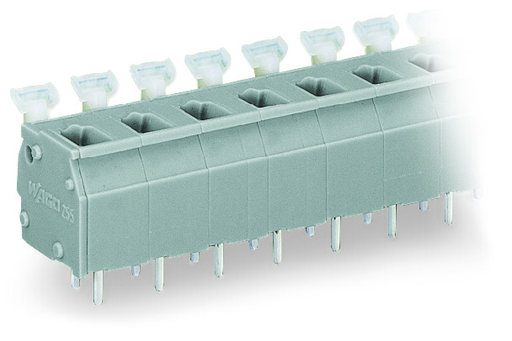

WAGO 255-509

255-509 WAGO 255-509

WAGO 255-509
Part # 255-509
Manufacturer WAGO
GTIN 4044918661690
Condition New
Price: $ 5.38

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD PC STRIP 9-POS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal strip 2 solder pins / pole 9 pole

Features

  • PCB terminal blocks with push-buttons and CAGE CLAMP® connection
  • Versions with Ex approval
  • Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
  • Ideal for in-the-field wiring thanks to simplified push-button actuation
  • Convenient, tool-free operation

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
  • DEKRA Certification B.V., CCA, 2160584.40, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7283, IEC 60947-7-4
  • DEKRA Certification B.V., CCA, 71-113038, EN 60947-7-4
  • DEKRA Certification B.V., CCA, NTR NL-7146, EN 60947
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA

Specifications

Notes

  • Variants:: Other pole numbers || Versions for Ex e II and Ex i || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated voltage (III/2): 630 V
  • Rated surge voltage (III/2): 6 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.08 … 2.5 mm² / 25 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Conductor connection direction to PCB: 90 °
  • Pole No.: 9

Physical Data

  • Pin spacing: 7.5/7.62 mm / 0.295/0.3 inch
  • Width: 70.4 mm / 2.772 inch
  • Height: 18.2 mm / 0.717 inch
  • Height from the surface: 14.2 mm / 0.559 inch
  • Depth: 18.3 mm / 0.72 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 0.7 x 0.7 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.276 MJ
  • Weight: 13.079 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4044918661690
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
