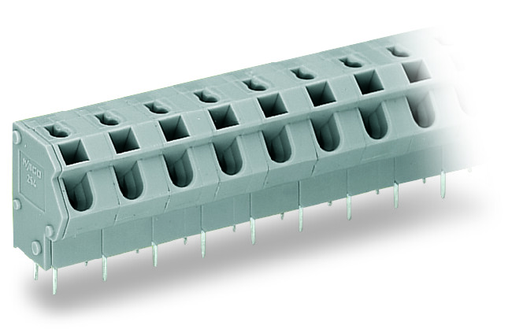

WAGO 254-556

254-556 WAGO 254-556

WAGO 254-556
Part # 254-556
Manufacturer WAGO
GTIN 4044918940887
Condition New
Price: $ 2.44

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
6 POS PCB STRIP
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-Conductor PCB terminal strip 2 solder pins / pole 6 pole

Features

  • PCB terminal strips with screwdriver-actuated PUSH WIRE® termination
  • Push-in termination of solid and ferruled, fine-stranded conductors
  • Test socket for 2 mm Ø test plug
  • Save space on the PCB, just 8.9 mm deep

Approvals

  • American Bureau of Shipping, ABS, 14-HG1241537-PDA
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • DEKRA Certification B.V., CCA, NTR NL 7375, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Versions for Ex i || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated voltage (III/2): 630 V
  • Rated surge voltage (III/2): 6 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Operating tool
  • Solid conductor: 0.5 … 2.5 mm² / 20 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm²
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 6

Physical Data

  • Pin spacing: 7.5/7.62 mm / 0.295/0.3 inch
  • Width: 46.5 mm / 1.831 inch
  • Height: 19.7 mm / 0.776 inch
  • Height from the surface: 15.7 mm / 0.618 inch
  • Depth: 13.5 mm / 0.531 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 0.5 x 0.75 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.150 MJ
  • Weight: 8.022 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918940887
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
