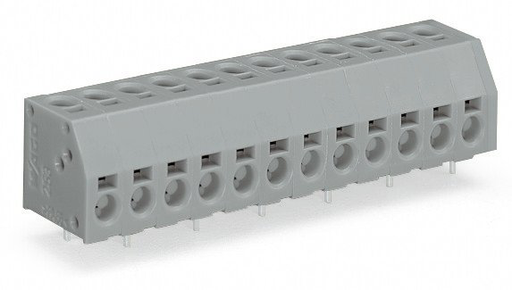

WAGO 253-115

253-115 WAGO 253-115

WAGO 253-115
Part # 253-115
Manufacturer WAGO
GTIN 4017332649759
Condition New
Price: $ 8.11

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD TERMINAL STRIP 15-POS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Conductor PCB terminal strip 1 solder pin / pole staggered 15 pole

Features

  • PCB terminal strips with screwdriver-actuated PUSH WIRE® termination
  • Double-conductor connection provides top-entry (vertical) and/or side-entry (horizontal) wiring
  • Push-in termination of solid conductors
  • Double entries for power supply and potential distribution

Approvals

  • DEKRA Certification B.V., ENEC, 71-101931, EN 60947
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059
  • DEKRA Certification B.V., CCA, 2126302.02, EN 60998
  • UL International Germany GmbH, UL, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NTR NL-7649, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 6580, EN 60998
  • VDE Prüf- und Zertifizierungsinstitut, VDE, 40028668, EN 60998

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 17.5 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 8 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 8 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 8 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 8 A

Connection 1

  • Connection type (1): PUSH WIRE® connection
  • Connection technology: PUSH WIRE®
  • Number of connection points: 1
  • Actuation type: Operating tool
  • Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Strip length: 8.5 … 9.5 mm / 0.33 … 0.37 inch
  • Note (strip length): 7 … 8 mm / 0.28 … 0.31 inch (for wiring on both sides)
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 15

Connection 2

  • Connection type 2: PUSH WIRE® connection
  • Connection technology 2: PUSH WIRE®
  • Number of connection points 2: 1
  • Solid conductor 2: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Strip length 2: 8.5 … 9.5 mm / 0.33 … 0.37 inch
  • Note (strip length) 2: 7 … 8 mm / 0.28 … 0.31 inch (for wiring on both sides)
  • Conductor connection direction to PCB 2: 90 °

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 77 mm / 3.031 inch
  • Height: 16.6 mm / 0.654 inch
  • Height from the surface: 13 mm / 0.512 inch
  • Depth: 12.8 mm / 0.504 inch
  • Solder pin length: 3.6 mm
  • Solder pin dimensions: 0.5 x 0.8 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (staggered)
  • Number of solder pins per potential: 1

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.265 MJ
  • Weight: 12.934 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4017332649759
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
