WAGO 252-154

252-154 WAGO 252-154

WAGO 252-154
Part # 252-154
Manufacturer WAGO
Condition New
Price: $ 1.84

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD F-CONNECT 4-POLE 3.5MM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

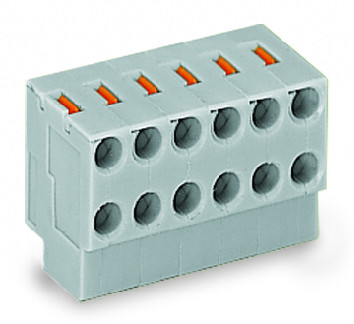

2-Conductor female PCB connector strip for solder pin strip 4x2 pole

Features

  • 2-conductor female connector with push-buttons and PUSH WIRE® connection
  • Push-in termination of solid conductors – conductor removal via push-buttons
  • Double entries for power supply and distribution
  • Quick and easy PCB replacement
  • Loop connection is retained, even when unmated
  • Group arrangement is possible without losing any poles

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7110, EN 60947
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059
  • DEKRA Certification B.V., ENEC, 2160584.26, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7320, EN 60947-7-4

Specifications

Notes

  • Variants:: Other pole numbers || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 2 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 2 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 2 A

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Push-button
  • Solid conductor: 0.14 … 0.5 mm² / 26 … 20 AWG
  • Conductor diameter: 0.4 … 0.8 mm / 26 … 20 AWG
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 4

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 14 mm / 0.551 inch
  • Height: 13.1 mm / 0.516 inch
  • Depth: 10.5 mm / 0.413 inch

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For PCB
  • Mating direction to the rail-mount terminal block: 90 °

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Copper alloy
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.047 MJ
  • Weight: 1.972 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454039936
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
