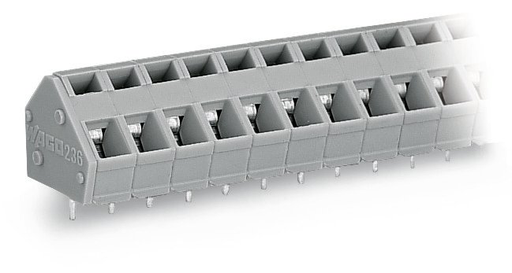

WAGO 236-106

236-106 WAGO 236-106

WAGO 236-106
Part # 236-106
Manufacturer WAGO
GTIN 4044918766227
Condition New
Price: $ 2.65

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD PC STRIP 45 DEG-1 PIN
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal strip 1 solder pin / pole rear

Features

  • PCB terminal strips with CAGE CLAMP® connection, screwdriver actuation parallel or perpendicular to conductor entry
  • Versions with Ex approval
  • Mixed-color PCB terminal strips from factory
  • Operating tools for factory wiring
  • 45° conductor entry angle permits a wide range of applications and wiring options
  • Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7109, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 1673957, C22.2 No. 158
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
  • DEKRA Certification B.V., CCA, 2168090.01, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7195, EN 60998

Specifications

Notes

  • Variants:: Other pole numbers || Versions for Ex e II and Ex i || Other colors || Mixed-color PCB connector strips || Direct marking || Solder pin length: 3.6 mm || Solder pin length: 5.5 mm || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 6

Physical Data

  • Pin spacing: 5/5.08 mm / 0.197/0.2 inch
  • Width: 32.3 mm / 1.272 inch
  • Height: 17 mm / 0.669 inch
  • Height from the surface: 13 mm / 0.512 inch
  • Depth: 14 mm / 0.551 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 0.7 x 0.7 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.082 MJ
  • Weight: 5.236 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4044918766227
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
