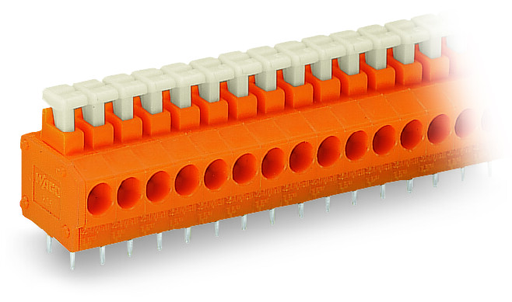

WAGO 235-108

235-108 WAGO 235-108

WAGO 235-108
Part # 235-108
Manufacturer WAGO
GTIN 4044918828765
Condition New
Price: $ 1.59

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD ORANGE PCB TERMINAL STRIP
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-Conductor PCB terminal strip 2 solder pins / pole 8 pole

Features

  • PCB terminal strips with push-buttons
  • Push-in termination of solid and ferruled conductors
  • Convenient termination/removal of fine-stranded conductors via push-buttons

Approvals

  • American Bureau of Shipping, ABS, 19-HG1869876-PDA
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • DEKRA Certification B.V., CCA, 2149549.02, EN 60947
  • VDE Prüf- und Zertifizierungsinstitut, VDE, 40029328, EN 60947
  • DEKRA Certification B.V., CSA, 1673956, C22.2
  • DEKRA Certification B.V., CCA, NTR NL-7144, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 6919, EN 60998
  • Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
  • DEKRA Certification B.V., CCA, NTR NL-7774, EN 60947-7-4

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 200 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 500 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 17.5 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor: 0.75 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 8

Physical Data

  • Pin spacing: 3.81 mm / 0.15 inch
  • Width: 31.98 mm / 1.259 inch
  • Height: 19.1 mm / 0.752 inch
  • Height from the surface: 15.5 mm / 0.61 inch
  • Depth: 12.5 mm / 0.492 inch
  • Solder pin length: 3.6 mm
  • Solder pin dimensions: 0.4 x 0.8 mm
  • Drilled hole diameter with tolerance: 1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Orange
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.084 MJ
  • Weight: 4.726 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4044918828765
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
