WAGO 233-109

233-109 WAGO 233-109

WAGO 233-109
Part # 233-109
Manufacturer WAGO
GTIN 4045454049232
Condition New
Price: $ 3.57

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD PC STRIP 9-POS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

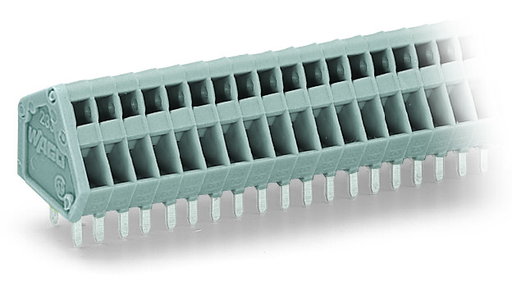

PCB terminal strip 2 solder pins / pole 9 pole

Features

  • Compact terminal strips with CAGE CLAMP® connection and screwdriver actuation parallel or perpendicular to conductor entry
  • Double solder pins for high mechanical stability
  • Custom color combinations

Approvals

  • American Bureau of Shipping, ABS, 19-HG1869876-PDA
  • DEKRA Certification B.V., CCA, 2153951.01, EN 60998
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • UL International Germany GmbH, UL, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 71-111040, EN 60947-7-4
  • DEKRA Certification B.V., CSA, 1465035, C22.2
  • DEKRA Certification B.V., CCA, NTR NL 6946, EN 60998
  • DEKRA Certification B.V., CCA, NTR NL 7786, EN 60947-7-4

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 63 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 6 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 150 V
  • Rated current UL (Use Group B): 4 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 150 V
  • Rated current CSA (Use Group B): 4 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
  • Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 mm²
  • Note (conductor cross-section): Terminating 0.75 mm²/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Conductor connection direction to PCB: 30 °
  • Pole No.: 9

Physical Data

  • Pin spacing: 2.5 mm / 0.098 inch
  • Width: 24.8 mm / 0.976 inch
  • Height: 15.7 mm / 0.618 inch
  • Height from the surface: 11.7 mm / 0.461 inch
  • Depth: 12.1 mm / 0.476 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 0.5 x 0.75 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.040 MJ
  • Weight: 3.123 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4045454049232
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
