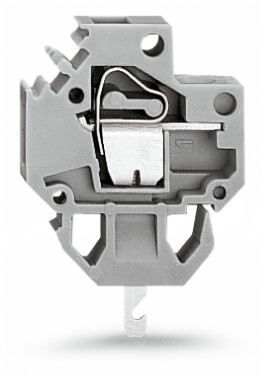

Features

• Modular through terminal blocks with screwdriver-actuated CAGE CLAMP®
• Tool-free insertion into sheet metal cutout
• Conductor entry parallel to enclosure wall saves space

Approvals

• DEKRA Certification B.V., CSA, 70010891, C22.2
• UL International Germany GmbH, UL, E45172, UL 1059
• Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1 || IEC/EN 60664-1
• Ratings (note): Solder connection
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 20 A
• Ratings (note) 2: Quick connect contact
• Rated voltage (III/3) 2: 320 V
• Rated surge voltage (III/3) 2: 4 kV
• Rated voltage (III/2) 2: 320 V
• Rated surge voltage (III/2) 2: 4 kV
• Rated voltage (II/2) 2: 630 V
• Rated surge voltage (II/2) 2: 4 kV
• Rated current 2: 6 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 6 A
• Rated voltage UL (Use Group C): 300 V
• Rated current UL (Use Group C): 6 A
• Rated voltage UL (Use Group D): 600 V
• Rated current UL (Use Group D): 5 A

Ratings Per Csa

• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 6 A
• Rated current CSA (Use Group C): 6 A
• Rated voltage CSA (Use Group D): 600 V
• Rated current CSA (Use Group D): 5 A

Connection 1

• Connection technology: CAGE CLAMP®
• Number of connection points: 1
• Actuation type: Operating tool
• Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Pole No.: 1

Connection 2

• Connection technology 2: Solder connection
• Number of connection points 2: 1

Connection 3

• Connection technology 3: Quick connect contact

Physical Data

• Pin spacing: 6 mm / 0.236 inch
• Width: 6 mm / 0.236 inch
• Height: 38.5 mm / 1.516 inch
• Height from the surface: 22 mm / 0.866 inch
• Depth: 26 mm / 1.024 inch
• Solder pin dimensions: 4.8 x 0.8 mm

Mechanical Data

• Housing sheet thickness: 2.5 … 2.5 mm / 0.098 … 0.098 inch
• Mounting type: Snap-in foot || Feed-through mounting

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.054 MJ
• Weight: 3.606 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918794442
• Customs tariff number Sales Organisation Germany: 85369010000
