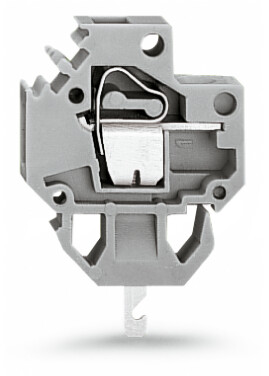

WAGO 226-101

226-101 WAGO 226-101

WAGO 226-101
Part # 226-101
Manufacturer WAGO
Condition New
Price: $ 2.92

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SINGLE BLOCK-QUICK CONN/SOLDR
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Feedthrough terminal block push-on / solder connection 2.8 x 0.8 1 pole

Features

  • Modular through terminal blocks with screwdriver-actuated CAGE CLAMP®
  • Tool-free insertion into sheet metal cutout
  • Conductor entry parallel to enclosure wall saves space

Approvals

  • UL International Germany GmbH, UL, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 70010891, C22.2
  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1 || IEC/EN 60664-1
  • Ratings (note): Solder connection
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 20 A
  • Ratings (note) 2: Quick connect contact
  • Rated voltage (III/3) 2: 320 V
  • Rated surge voltage (III/3) 2: 4 kV
  • Rated voltage (III/2) 2: 320 V
  • Rated surge voltage (III/2) 2: 4 kV
  • Rated voltage (II/2) 2: 630 V
  • Rated surge voltage (II/2) 2: 4 kV
  • Rated current 2: 6 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 6 A
  • Rated voltage UL (Use Group C): 300 V
  • Rated current UL (Use Group C): 6 A
  • Rated voltage UL (Use Group D): 600 V
  • Rated current UL (Use Group D): 5 A

Ratings Per Csa

  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 6 A
  • Rated current CSA (Use Group C): 6 A
  • Rated voltage CSA (Use Group D): 600 V
  • Rated current CSA (Use Group D): 5 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Number of connection points: 1
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Pole No.: 1

Connection 2

  • Connection technology 2: Solder connection
  • Number of connection points 2: 1

Connection 3

  • Connection technology 3: Quick connect contact

Physical Data

  • Pin spacing: 6 mm / 0.236 inch
  • Width: 6 mm / 0.236 inch
  • Height: 36.5 mm / 1.437 inch
  • Height from the surface: 22 mm / 0.866 inch
  • Depth: 26 mm / 1.024 inch
  • Solder pin dimensions: 2.8 x 0.8 mm

Mechanical Data

  • Housing sheet thickness: 1.5 … 1.5 mm / 0.059 … 0.059 inch
  • Mounting type: Snap-in foot || Feed-through mounting

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.054 MJ
  • Weight: 3.429 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918794350
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
