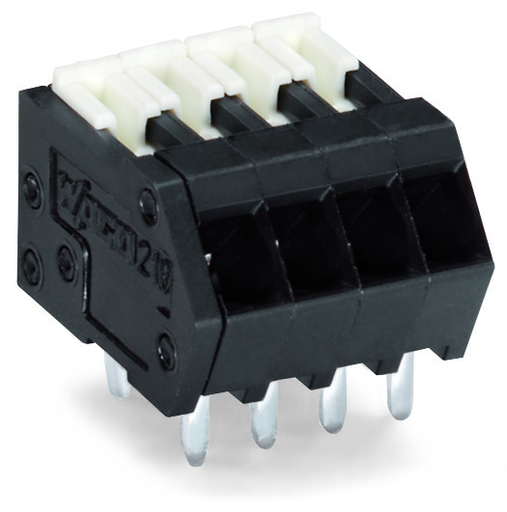

WAGO 218-106/000-604

218-106/000-604 WAGO 218-106/000-604

WAGO 218-106/000-604
Part # 218-106/000-604
Condition New
Price: $ 4.44

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
THR PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
THR PCB terminal block

Features

  • Terminal strips are just 8.1 mm tall and feature an innovative, locking slide-actuated CAGE CLAMP®
  • Several clamping units can be held open simultaneously
  • Easily terminate stranded conductors in
  • THR soldering provides integration into SMT assembly and soldering processes

Approvals

  • DEKRA Certification B.V., CSA, 1565656, C22.2 No. 158

Specifications

Notes

  • Variants:: Other pole numbers || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 32 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 6 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Slider
  • Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
  • Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 mm²
  • Note (conductor cross-section): Terminating 0.75 mm²/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Conductor connection direction to PCB: 40 °
  • Pole No.: 6

Physical Data

  • Pin spacing: 2.5 mm / 0.098 inch
  • Width: 16.5 mm / 0.65 inch
  • Height: 10.9 mm / 0.429 inch
  • Height from the surface: 8.1 mm / 0.319 inch
  • Depth: 13 mm / 0.512 inch
  • Solder pin length: 2.8 mm
  • Solder pin dimensions: 0.5 x 0.75 mm
  • Plated through-hole diameter (THR): 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THR
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Black
  • Material group: IIIa
  • Insulation material: Polyamide (PA46)
  • Flammability class per UL94: V2
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.027 MJ
  • Weight: 2.012 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454422233
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
