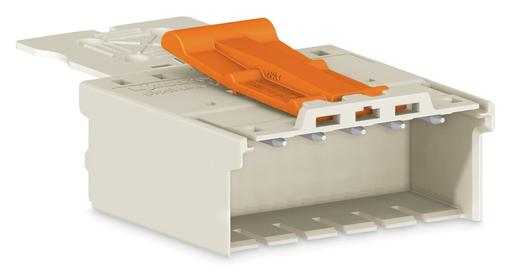

WAGO 2092-1502/002-000

2092-1502/002-000 WAGO 2092-1502/002-000

WAGO 2092-1502/002-000
Part # 2092-1502/002-000
Condition New
Price: $ 2.34

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
1-conductor male connector
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-conductor male connector

Features

  • Universal connection for all conductor types
  • Simple, push-in termination of solid and ferruled conductors
  • Easy-to-use design does not require special tools
  • Testing parallel to conductor entry – tip contact
  • For “wire-to-wire” and “board-to-wire” connections
  • Integrated release lever

Approvals

  • DEKRA Certification B.V., CB, NL-49737/A1, IEC 61984
  • DEKRA Certification B.V., CSA, 2362521, C22.2
  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., KEMA/KEUR, 71-102261 REV.2, EN 61984
  • DEKRA Certification B.V., CSA, 2362521, C22.2 No. 158
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059

Specifications

Notes

  • Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Pole No.: 2

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 12.2 mm / 0.48 inch
  • Height: 18.2 mm / 0.717 inch
  • Depth: 52.6 mm / 2.071 inch

Mechanical Data

  • Design: With gripping plate

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For conductor
  • Mismating protection: No
  • Locking of plug-in connection: Locking latch

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.088 MJ
  • Weight: 5.179 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821164159
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
