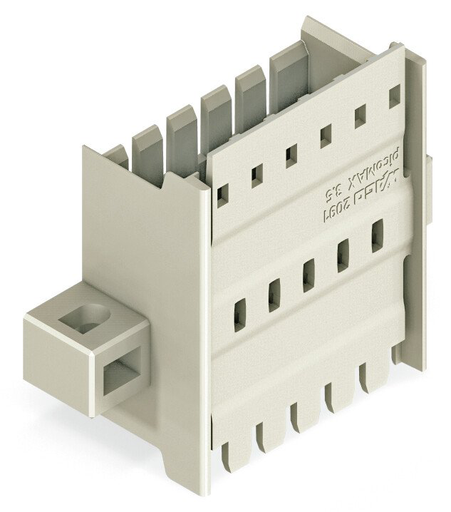

Panel feedthrough male connector
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Panel feedthrough male connector

Features

  • Male connectors for screw mounting in device or enclosure panels
  • External plug-in connection via locking latches to female connectors with conductor terminations
  • Internal plug-in connection to female headers with solder pins or female connectors with conductor terminations
  • Also available with pre-assembled female connectors on both sides
  • Fixing flanges also suitable for panel mounting

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-102260 REV.1, EN 61984
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 2362521, C22.2 No. 158
  • DEKRA Certification B.V., CB, NL-49736/A1, IEC 61984
  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., CSA, 2362521, C22.2

Specifications

Notes

  • Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 160 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Pole No.: 2

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 21 mm / 0.827 inch
  • Height: 12.4 mm / 0.488 inch
  • Depth: 29 mm / 1.142 inch

Mechanical Data

  • Mounting type: Mounting flange || Feed-through mounting || Panel mounting

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For pluggable connector
  • Mismating protection: No
  • Locking of plug-in connection: Locking latch

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.068 MJ
  • Weight: 1.850 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821161851
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
