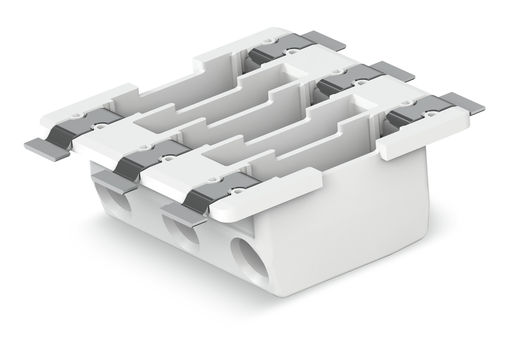

WAGO 2070-453/998-406

2070-453/998-406 WAGO 2070-453/998-406

WAGO 2070-453/998-406
Part # 2070-453/998-406
Condition New
Price: $ 0.70

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Through-Board SMD PCB Terminal Block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Through-Board SMD PCB Terminal Block

Features

  • SMD PCB terminal block with Push-in CAGE CLAMP® connection for back-side wiring of LED modules
  • Low profile of just 1.1 mm on the module’s front side
  • Push-in termination of solid conductors
  • Insert fine-stranded conductors and remove all conductors via operating tool

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-107967, EN 60998
  • DEKRA Certification B.V., KEMA/KEUR, 71-107965, EN 60947-7-4
  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • DEKRA Certification B.V., CB, NL-57652, IEC 60998
  • DEKRA Certification B.V., CB, NL-57653, EN 60998

Specifications

Notes

  • Note: Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
  • Variants:: Reel diameter of tape-and-reel packaging: 381 mm || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1 || IEC/EN 60664-1
  • Ratings (note): Electrical data for FR4 PCB type
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 9 A
  • Ratings (note) 2: Electrical data for metal-core PCBs
  • Rated voltage (III/3) 2: 200 V
  • Rated surge voltage (III/3) 2: 4 kV
  • Rated voltage (III/2) 2: 320 V
  • Rated surge voltage (III/2) 2: 4 kV
  • Rated voltage (II/2) 2: 500 V
  • Rated surge voltage (II/2) 2: 4 kV
  • Rated current 2: 9 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 9 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
  • Fine-stranded conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
  • Strip length: 8 … 10 mm / 0.31 … 0.39 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 3

Physical Data

  • Pin spacing: 6.5 mm / 0.256 inch
  • Width: 15.8 mm / 0.622 inch
  • Height: 7.45 mm / 0.293 inch
  • Depth: 22.2 mm / 0.874 inch
  • Reel diameter of tape-and-reel packaging: 330 mm
  • Tape width: 44 mm

Mechanical Data

  • Design: Without cover
  • Mounting type: Through-board

Pcb Contact

  • PCB Contact: SMD
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: White
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 1.810 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4055143652810
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
