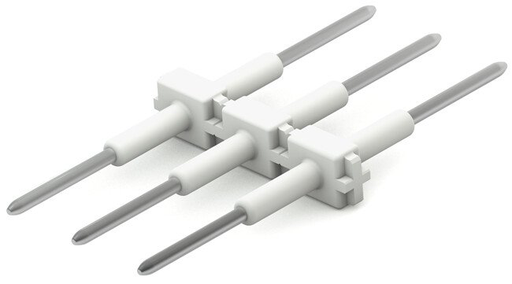

WAGO 2061-904/034-000

2061-904/034-000 WAGO 2061-904/034-000

WAGO 2061-904/034-000
Part # 2061-904/034-000
Condition New
Price: $ 0.92

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Board-to-Board Link
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Board-to-Board Link

Features

  • Board-to-board links simplify in-line assembly of LED modules
  • Easy push-in connection and disconnection without push-button actuation

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-106232, EN 60838
  • DEKRA Certification B.V., CCA, NTR NL-7721, EN 60838

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 9 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

  • Pole No.: 4

Physical Data

  • Pin spacing: 6 mm / 0.236 inch
  • Width: 23.7 mm / 0.933 inch
  • Height: 2.5 mm / 0.098 inch
  • Depth: 34 mm / 1.339 inch

Mechanical Data

  • Mating cycles (max.): 10
  • Number of mating cycles: Max. 10 connections/disconnections
  • Suitable: For SMD PCB terminal blocks (2061 Series)

Material Data

  • Color: White
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Silver-plated
  • Fire load: 0.000 MJ
  • Weight: 1.420 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4055143656757
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
