Features

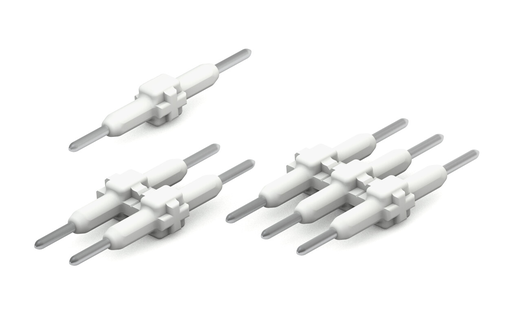

• Verbindungselement zum vereinfachten Aneinanderreihen von LED-Platinen
• Einfache Handhabung durch direktes Stecken und Trennen

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-106226, EN 60838
• DEKRA Certification B.V., CCA, NTR NL-7680, EN 60947-7-4
• Underwriters Laboratories Inc., UL, E45171, UL 1977
• DEKRA Certification B.V., CCA, NTR NL-7720, EN 60838
• DEKRA Certification B.V., CCA, 71-103560, EN 60947-7-4

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 63 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 3 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Pole No.: 3

Physical Data

• Pin spacing: 3 mm / 0.118 inch
• Width: 8.7 mm / 0.343 inch
• Height: 2.5 mm / 0.098 inch
• Depth: 15.3 mm / 0.602 inch

Mechanical Data

• Mating cycles (max.): 10
• Number of mating cycles: Max. 10 connections/disconnections
• Suitable: For SMD PCB terminal blocks (2059 Series)

Material Data

• Color: White
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Silver-plated
• Fire load: 0.002 MJ
• Weight: 0.190 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143610063
• Customs tariff number Sales Organisation Germany: 85369010000
