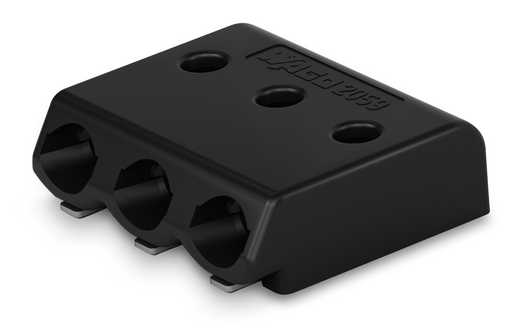

WAGO 2059-323/998-403

2059-323/998-403 WAGO 2059-323/998-403

WAGO 2059-323/998-403
Part # 2059-323/998-403
Condition New
Price: $ 0.81

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SMD PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
SMD PCB terminal block

Features

  • SMD PCB terminal blocks with PUSH WIRE® connection technology
  • Push-in termination of solid conductors
  • Easy conductor removal via operating tool
  • Height of just 2.7 mm
  • Assemble terminal blocks without pole loss
  • Available in tape-and-reel packaging for automated assembly

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-106226, EN 60838
  • DEKRA Certification B.V., CCA, 71-103560, EN 60947-7-4
  • DEKRA Certification B.V., CCA, NTR NL-7720, EN 60838
  • DEKRA Certification B.V., CCA, NTR NL-7680, EN 60947-7-4

Specifications

Notes

  • Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
  • Recommendation: Recommendation for stencil:Material thickness: 150 µm; Pattern layout identical to solder pad layout

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 63 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 3 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Rated voltage UL 1977: 250 V
  • Rated current UL 1977: 3 A

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Operating tool
  • Solid conductor: 0.14 … 0.34 mm² / 26 … 22 AWG
  • Note (conductor cross-section): For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using an operating tool.
  • Strip length: 4 … 5.5 mm / 0.16 … 0.22 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 3

Connection 2

  • Solid conductor 2: 0.5 mm² / 20 AWG
  • Note (conductor cross-section) 2: No reconnection of smaller conductor cross-sections (0.5 mm²/20 AWG)
  • Strip length 2: 6 … 7.5 mm / 0.24 … 0.3 inch

Physical Data

  • Pin spacing: 3 mm / 0.118 inch
  • Width: 8.9 mm / 0.35 inch
  • Height: 2.7 mm / 0.106 inch
  • Depth: 7.9 mm / 0.311 inch
  • Reel diameter of tape-and-reel packaging: 330 mm
  • Tape width: 16 mm

Pcb Contact

  • PCB Contact: SMD
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Black
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 0.247 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4055143476515
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
