WAGO 831-3608

831-3608 WAGO 831-3608

WAGO 831-3608
Part # 831-3608
Manufacturer WAGO
GTIN 4045454002169
Condition New
Price: $ 9.03

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

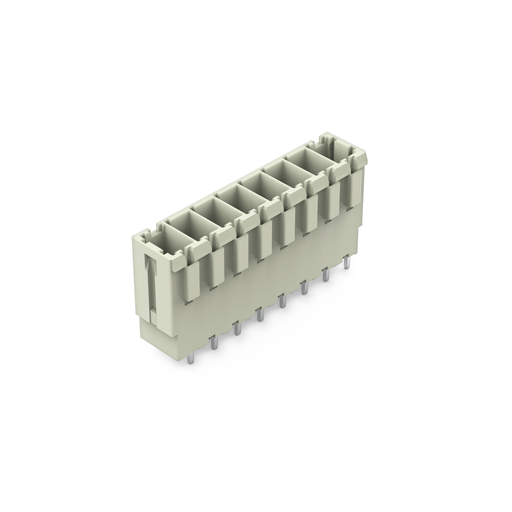

HEADER, STRAIGHT PIN, 8-P, LT GRAY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Header with straight solder pin 8 pole

Features

  • Male headers may be mounted horizontally or vertically via straight or angled solder pins
  • Three solder pins per pole provide high electrical and mechanical stability
  • 100 % protected against mismating
  • Coding via coding fingers

Approvals

  • DEKRA Certification B.V., CSA, 1466354, C22.2
  • DEKRA Certification B.V., KEMA/KEUR, 71-116057, EN 61984
  • DEKRA Certification B.V., CB, NL-61360/M1, IEC 61984
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Protection against PCB mounting errors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated voltage (III/2): 630 V
  • Rated surge voltage (III/2): 6 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 6 kV
  • Rated current: 41 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group C): 300 V
  • Rated current UL (Use Group C): 42 A
  • Rated voltage UL (Use Group D): 600 V
  • Rated current UL (Use Group D): 5 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group C): 300 V
  • Rated current CSA (Use Group C): 41 A
  • Rated voltage CSA (Use Group D): 600 V
  • Rated current CSA (Use Group D): 5 A

Connection 1

  • Pole No.: 8

Physical Data

  • Pin spacing: 7.62 mm / 0.3 inch
  • Width: 63.84 mm / 2.513 inch
  • Height: 33 mm / 1.299 inch
  • Height from the surface: 29 mm / 1.142 inch
  • Depth: 14.8 mm / 0.583 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 1 x 1.2 mm
  • Drilled hole diameter with tolerance: 1.7 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: Yes
  • Mating direction to the PCB: 90 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 3

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 22.060 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454002169
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
