WAGO 831-3205

831-3205 WAGO 831-3205

WAGO 831-3205
Part # 831-3205
Manufacturer WAGO
GTIN 4045454160913
Condition New
Price: $ 11.10

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

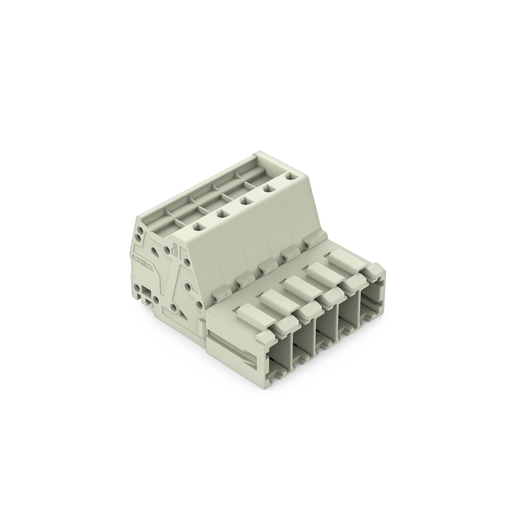

M-CONN 5-P, 7.62MM/0.3" LT GRAY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Male connector 5 pole pin spacing 7.62 mm / 0.3 in

Features

  • Universal connection for all conductor types
  • Push-in termination of solid or ferruled conductors
  • Integrated test ports for 2 mm Ø test plugs
  • 600 V UL per UL 1059
  • 100 % protected against mismating
  • Coding via coding fingers

Approvals

  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • DEKRA Certification B.V., CSA, 1466354, C22.2
  • DEKRA Certification B.V., KEMA/KEUR, 71-116057, EN 61984
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CB, NL-61360/M1, IEC 61984

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 41 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 42 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 41 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 6 mm²
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Pole No.: 5
  • Conductor entry direction to mating direction: 0 °

Connection 2

  • Connection technology 2: Quick-connect/solder contact

Physical Data

  • Pin spacing: 7.62 mm / 0.3 inch
  • Width: 39.98 mm / 1.574 inch
  • Height: 27.5 mm / 1.083 inch
  • Depth: 46 mm / 1.811 inch

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For conductor
  • Mismating protection: Yes
  • Locking of plug-in connection: Without

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 33.230 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454160913
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
