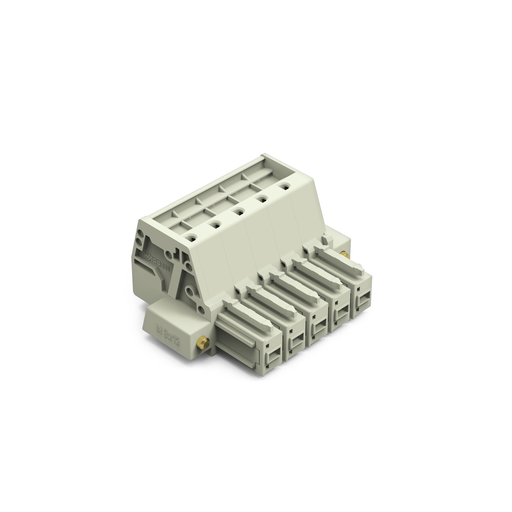

WAGO 831-3105/107-000

831-3105/107-000 WAGO 831-3105/107-000

WAGO 831-3105/107-000
Part # 831-3105/107-000
Manufacturer Wago
Condition New
Price: $ 12.07

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
1-conductor female plug; 100% protected against mismating, light gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-conductor female plug; 100% protected against mismating, light gray

Features

  • Universal connection for all conductor types
  • Push-in termination of solid or ferruled conductors
  • Integrated test ports for 2 mm Ø test plugs
  • 600 V UL per UL 1059
  • 100 % protected against mismating
  • Coding via coding fingers

Approvals

  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CB, NL-61360/M1, IEC 61984
  • DEKRA Certification B.V., KEMA/KEUR, 71-116057, EN 61984

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 41 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 42 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 41 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 6 mm²
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Pole No.: 5
  • Conductor entry direction to mating direction: 0 °

Physical Data

  • Pin spacing: 7.62 mm / 0.3 inch
  • Width: 54.6 mm / 2.150 inch
  • Height: 27.6 mm / 1.087 inch
  • Depth: 42.5 mm / 1.673 inch

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor
  • Mismating protection: Yes
  • Locking of plug-in connection: Screw flange

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Material of the additional spring for socket contact: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.397 MJ
  • Weight: 40.720 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4055144038361
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
