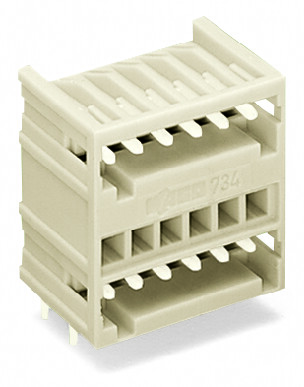

WAGO 734-407

734-407 WAGO 734-407

WAGO 734-407
Part # 734-407
Manufacturer WAGO
GTIN 4044918872935
Condition New
Price: $ 6.40

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
DBL DECK CLOSED END HDR LT. GRAY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
DBL DECK CLOSED END HDR LT. GRAY

Features

  • Horizontal or vertical PCB mounting via straight or angled solder pins
  • 100% protected against mismating; only mating halves with the same number of poles can be connected together
  • Coding option available

Approvals

  • UL International Germany GmbH, UL, E45171, UL 1977
  • DEKRA Certification B.V., CCA, 2169534.02, EN 61984
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • DEKRA Certification B.V., CCA, nl-54190, EN 61984

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 160 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 14

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 26.9 mm / 1.059 inch
  • Height: 26.6 mm / 1.047 inch
  • Height from the surface: 23 mm / 0.906 inch
  • Depth: 16.8 mm / 0.661 inch
  • Solder pin length: 3.6 mm
  • Solder pin dimensions: 1 x 1 mm
  • Drilled hole diameter with tolerance: 1.4 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: Yes
  • Mating direction to the PCB: 0 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.139 MJ
  • Weight: 7.854 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918872935
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
