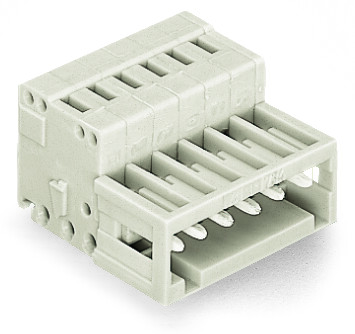

WAGO 734-310

734-310 WAGO 734-310

WAGO 734-310
Part # 734-310
Manufacturer WAGO
GTIN 4044918513661
Condition New
Price: $ 8.97

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
M-CONN W/C-C V0 3.5MM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Male connector 10 pole pin spacing 3.5 mm / 0.138 in

Features

  • Universal connection for all conductor types
  • Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
  • For wire-to-wire and board-to-wire connections
  • Strain relief plates and housings for factory and field assembly
  • 100% protected against mismating
  • Coding option available

Approvals

  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • DEKRA Certification B.V., CCA, nl-54190, EN 61984
  • DEKRA Certification B.V., CSA, 1465035, C22.2
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • UL International Germany GmbH, UL, E45171, UL 1977
  • DEKRA Certification B.V., CCA, 2169534.02, EN 61984
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 160 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
  • Note (conductor cross-section): Terminating 1.5 mm² conductors is possible; however insulation diameter does not allow clamping units to be terminated in a row.
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch
  • Pole No.: 10
  • Conductor entry direction to mating direction: 0 °

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 37.4 mm / 1.472 inch
  • Height: 13.4 mm / 0.528 inch
  • Depth: 22.3 mm / 0.878 inch

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For conductor
  • Mismating protection: Yes
  • Locking of plug-in connection: Without

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.153 MJ
  • Weight: 8.230 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918513661
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
