WAGO 733-334/105-604/997-446

733-334/105-604/997-446 WAGO 733-334/105-604/997-446

WAGO 733-334/105-604/997-446
Part # 733-334/105-604/997-446
Manufacturer WAGO
GTIN 4045454774363
Condition New
Price: $ 2.20

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
CLOSED END HEADER 4-POS, BLACK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
CLOSED END HEADER 4-POS, BLACK

Features

  • THR male headers for reflow soldering in SMT applications

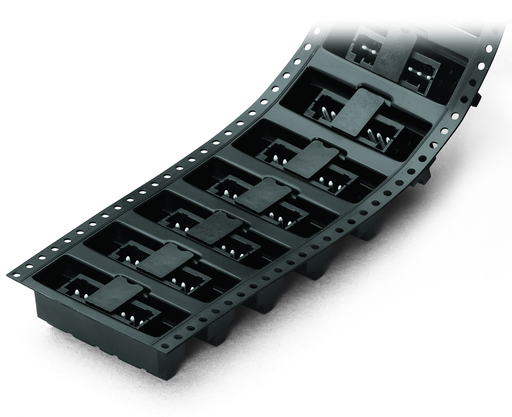

  • Available in tape-and-reel packaging for automated pick-and-place PCB assembly
  • Optimal thermal penetration via pin enclosure design provides lower soldering temperatures
  • 100% protected against mismating
  • Coding option available

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Other solder pin lengths || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 80 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 6 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 150 V
  • Rated current UL (Use Group B): 4 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 150 V
  • Rated current CSA (Use Group B): 4 A

Connection 1

  • Pole No.: 4

Physical Data

  • Pin spacing: 2.5 mm / 0.098 inch
  • Width: 12.5 mm / 0.492 inch
  • Height: 11.3 mm / 0.445 inch
  • Height from the surface: 8.9 mm / 0.35 inch
  • Depth: 7.8 mm / 0.307 inch
  • Solder pin length: 2.4 mm
  • Solder pin dimensions: 0.8 x 0.8 mm
  • Plated through-hole diameter (THR): 1.2 (+0.1) mm
  • Reel diameter of tape-and-reel packaging: 330 mm
  • Tape width: 44 mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: Yes
  • Mating direction to the PCB: 90 °

Pcb Contact

  • PCB Contact: THR
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Black
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.018 MJ
  • Weight: 0.870 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454774363
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
