WAGO 721-165/003-000

721-165/003-000 WAGO 721-165/003-000

WAGO 721-165/003-000
Part # 721-165/003-000
Manufacturer WAGO
GTIN 4044918905701
Condition New
Price: $ 2.75

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
CLSD END HDR V0 1.2MM ST LONG PINS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

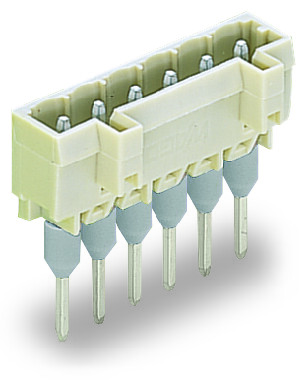

Male connector with straight long contact pins 5 pole

Features

  • Pluggable connectors for rail-mount terminal blocks equipped with CAGE CLAMP® connection
  • Male connectors with long contact pins connect to the termination ports of 280 Series Rail-Mount Terminal Blocks
  • Pins can be touched when the connector is unplugged, so power should be supplied via terminal block (observe rated voltage!)
  • 100 % protected against mismating
  • With coding fingers

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA
  • DEKRA Certification B.V., CB, NL-39756, IEC 61984
  • Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
  • DEKRA Certification B.V., KEMA/KEUR, 2190761.01, EN 61984
  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., CSA, 1466354, C22.2

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 15 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 5

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 28.2 mm / 1.11 inch
  • Height: 25.9 mm / 1.02 inch
  • Height from the surface: 12 mm / 0.472 inch
  • Depth: 11.4 mm / 0.449 inch

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For front-entry rail-mount terminal block
  • Mismating protection: Yes
  • Locking of plug-in connection: Without

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.044 MJ
  • Weight: 3.060 g

Environmental Requirements

  • Limit temperature range: -60 … +85 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918905701
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
