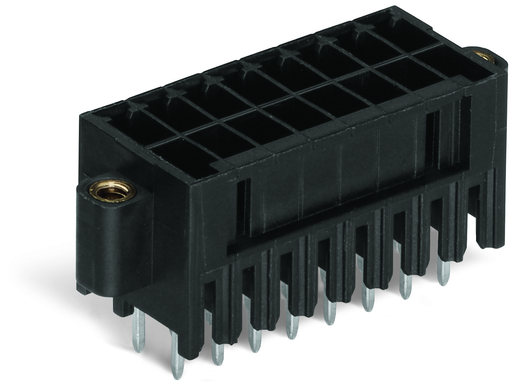

WAGO 713-1416/117-000

713-1416/117-000 WAGO 713-1416/117-000

WAGO 713-1416/117-000
Part # 713-1416/117-000
Condition New
Price: $ 12.60

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
THR male header, 2-row
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
THR male header, 2-row

Features

  • THR male headers for reflow soldering in SMT applications
  • Available in tape-and-reel packaging for automated pick-and-place PCB assembly
  • Separated pin slots prevent damage and make the headers touch-proof when unplugged
  • 100% protected against mismating
  • Coding option available

Approvals

  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Other solder pin lengths || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 80 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 250 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 150 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group C): 50 V
  • Rated current UL (Use Group C): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 150 V
  • Rated current CSA (Use Group B): 12 A

Connection 1

  • Pole No.: 32

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 66.1 mm / 2.602 inch
  • Height: 15.9 mm / 0.626 inch
  • Height from the surface: 13.5 mm / 0.531 inch
  • Depth: 13.3 mm / 0.524 inch
  • Solder pin length: 2.4 mm
  • Solder pin dimensions: 0.8 x 0.8 mm
  • Plated through-hole diameter (THR): 1.3 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: Yes
  • Mating direction to the PCB: 90 °
  • Locking of plug-in connection: Threaded flange

Pcb Contact

  • PCB Contact: THR
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Black
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.173 MJ
  • Weight: 8.552 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4050821156536
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
