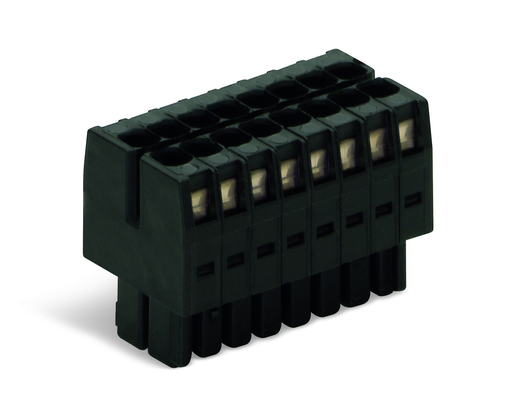

WAGO 713-1103

713-1103 WAGO 713-1103

WAGO 713-1103
Part # 713-1103
Condition New
Price: $ 5.60

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-conductor female connector
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor female connector

Features

  • Universal connection for all conductor types
  • Unique, compact, double-row connector system for conductor cross-sections up to 1.5 mm2
  • High-density, wire-to-board connections in very confined spaces
  • Centered strain relief plate anchors conductors, while acting as convenient connection and disconnection handle. It also provides easy access to operating slots – even when wired.
  • Coding fingers provide 100% protection against mismating

Approvals

  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CCA, NL-30980, IEC 61984
  • DEKRA Certification B.V., CSA, 2315087, C22.2
  • DEKRA Certification B.V., CCA, 2169947.01, EN 61984

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 80 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 250 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group C): 50 V
  • Rated current UL (Use Group C): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch
  • Pole No.: 6
  • Conductor entry direction to mating direction: 0 °

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 12 mm / 0.472 inch
  • Height: 18.8 mm / 0.74 inch
  • Depth: 16 mm / 0.63 inch

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor
  • Mismating protection: Yes
  • Locking of plug-in connection: Without

Material Data

  • Color: Black
  • Material group: II
  • Insulation material: Glass fiber-reinforced polyamide (PA66 GF)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.054 MJ
  • Weight: 3.350 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454696054
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
