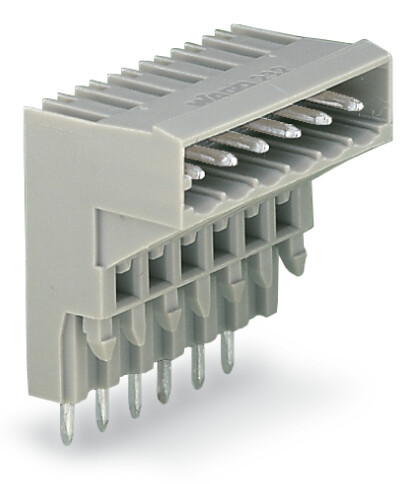

WAGO 232-346

232-346 WAGO 232-346

WAGO 232-346
Part # 232-346
Manufacturer WAGO
GTIN 4044918685528
Condition New
Price: $ 8.10

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
CLSD HDR DBL DECK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Headers for double deck assembly right angle solder pin, 1 x 1 mm / 0.039 x 0.039 in 16 pole

Features

  • Male headers for double-deck assembly provide high-density wiring for wire-to-board connections
  • Horizontal PCB mounting
  • Double-deck design allows male or female headers with angled solder pins to be placed on the lower deck
  • Coding option available

Approvals

  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • DEKRA Certification B.V., CB, NL-39756, IEC 61984
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • DEKRA Certification B.V., CSA, 1466354, C22.2
  • DEKRA Certification B.V., KEMA/KEUR, 2190761.01, EN 61984
  • American Bureau of Shipping, ABS, 19-HG15869876-PDA

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 12 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 16

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 83.2 mm / 3.276 inch
  • Height: 31 mm / 1.22 inch
  • Height from the surface: 26 mm / 1.024 inch
  • Depth: 17 mm / 0.669 inch
  • Solder pin length: 5 mm
  • Solder pin dimensions: 1 x 1 mm
  • Drilled hole diameter with tolerance: 1.4 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 0 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.330 MJ
  • Weight: 13.700 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918685528
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
