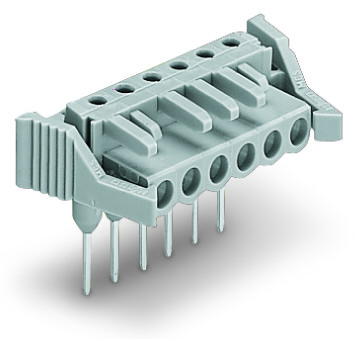

WAGO 232-232/005-000/039-000

232-232/005-000/039-000 WAGO 232-232/005-000/039-000

WAGO 232-232/005-000/039-000
Part # 232-232/005-000/039-000
Manufacturer WAGO
GTIN 4044918571951
Condition New
Price: $ 3.13

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD RT ANGLE 5MM SOLDER PINS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
MOD RT ANGLE 5MM SOLDER PINS

Features

  • Pluggable connectors for rail-mount terminal blocks equipped with CAGE CLAMP® connection
  • Female connectors with long contact pins connect to the termination ports of 280 Series Rail-Mount Terminal Blocks
  • Female connectors are touch-proof when unmated, providing a pluggable, live output
  • With coding fingers

Approvals

  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 1466354, C22.2

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 12 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 15 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 2

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 25.8 mm / 1.016 inch
  • Height: 26.1 mm / 1.028 inch
  • Height from the surface: 11.6 mm / 0.457 inch
  • Depth: 11.6 mm / 0.457 inch

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For front-entry rail-mount terminal block
  • Mismating protection: No
  • Locking of plug-in connection: Locking lever
  • Mating direction to the rail-mount terminal block: 0 °

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.066 MJ
  • Weight: 3.036 g

Environmental Requirements

  • Limit temperature range: -60 … +85 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918571951
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
