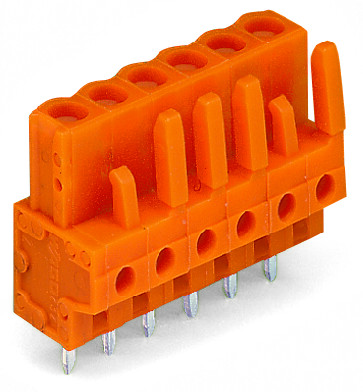

WAGO 232-177

232-177 WAGO 232-177

WAGO 232-177
Part # 232-177
Manufacturer WAGO
GTIN 4044918578943
Condition New
Price: $ 11.25

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD STRAIGHT .2" SOLDER PINS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Female plug with straight solder pin 17 pole

Features

  • Horizontal or vertical PCB mounting via straight or angled solder pins
  • For board-to-board and board-to-wire connections
  • Touch-proof PCB outputs
  • Easy-to-identify PCB inputs and outputs
  • With coding fingers

Approvals

  • American Bureau of Shipping, ABS, 19-HG15869876-PDA
  • DEKRA Certification B.V., KEMA/KEUR, 2190761.01, EN 61984
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • UL International Germany GmbH, UL, E45171, UL 1977
  • DEKRA Certification B.V., CB, NL-39756, IEC 61984

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || 3.8 mm pin projection for male headers with straight solder pins || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 12 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 15 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 17

Physical Data

  • Pin spacing: 5.08 mm / 0.2 inch
  • Width: 87.86 mm / 3.459 inch
  • Height: 23.25 mm / 0.915 inch
  • Height from the surface: 18.25 mm / 0.719 inch
  • Depth: 11.6 mm / 0.457 inch
  • Solder pin length: 5 mm
  • Solder pin dimensions: 0.6 x 1 mm
  • Drilled hole diameter with tolerance: 1.3 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 90 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire female connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Orange
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.243 MJ
  • Weight: 14.750 g

Environmental Requirements

  • Limit temperature range: -60 … +85 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918578943
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
