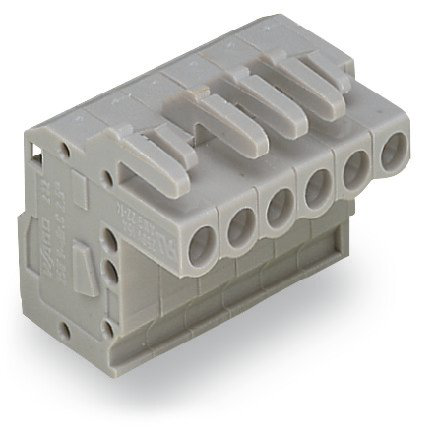

WAGO 232-105/026-000

232-105/026-000 WAGO 232-105/026-000

WAGO 232-105/026-000
Part # 232-105/026-000
Manufacturer WAGO
GTIN 4044918383851
Condition New
Price: $ 4.82

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD GY PLUG-RT ANG EXT LATCH
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Angled female plug 5 pole pin spacing 5 mm / 0.197 in

Features

  • Universal connection for all conductor types
  • Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
  • Integrated test ports
  • With coding fingers

Approvals

  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • DEKRA Certification B.V., KEMA/KEUR, 2190761.01, EN 61984
  • DEKRA Certification B.V., CB, NL-39756, IEC 61984
  • American Bureau of Shipping, ABS, 19-HG15869876-PDA
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE 000016Z
  • Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 1466354, C22.2

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 14 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 15 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 5
  • Conductor entry direction to mating direction: 270 °

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 27.4 mm / 1.079 inch
  • Height: 23.9 mm / 0.941 inch
  • Depth: 22.75 mm / 0.896 inch

Mechanical Data

  • Design: Angled

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor
  • Mismating protection: No
  • Locking of plug-in connection: Without

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.155 MJ
  • Weight: 9.411 g

Environmental Requirements

  • Limit temperature range: -60 … +85 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918383851
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
