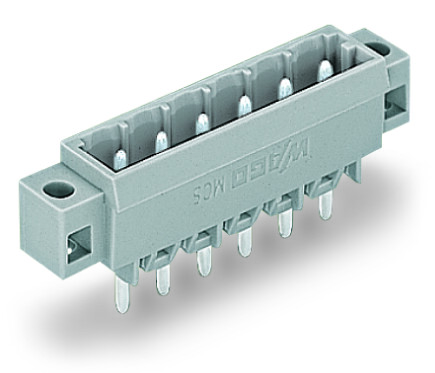

WAGO 231-136/040-000

231-136/040-000 WAGO 231-136/040-000

WAGO 231-136/040-000
Part # 231-136/040-000
Manufacturer WAGO
GTIN 4044918863278
Condition New
Price: $ 2.42

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
CLSD HDR-5MM-6P W/FIX FLANGE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Header straight solder pin, 1x1 mm / 0.039x 0.039 in 6 pole

Features

  • Horizontal or vertical PCB mounting via straight or angled solder pins
  • Pin cross-section: 1 x 1 mm
  • With coding fingers

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., CB, NL-39756, IEC 61984
  • Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
  • DEKRA Certification B.V., CSA, 1466354, C22.2
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || 3.8 mm pin projection for male headers with straight solder pins || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 12 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 6

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 42.8 mm / 1.685 inch
  • Height: 17 mm / 0.669 inch
  • Height from the surface: 12 mm / 0.472 inch
  • Depth: 8.4 mm / 0.331 inch
  • Solder pin length: 5 mm
  • Solder pin dimensions: 1 x 1 mm
  • Drilled hole diameter with tolerance: 1.4 (+0.1) mm

Mechanical Data

  • Mounting type: Mounting flange || Feed-through mounting || Panel mounting

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 90 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.046 MJ
  • Weight: 2.298 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918863278
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
