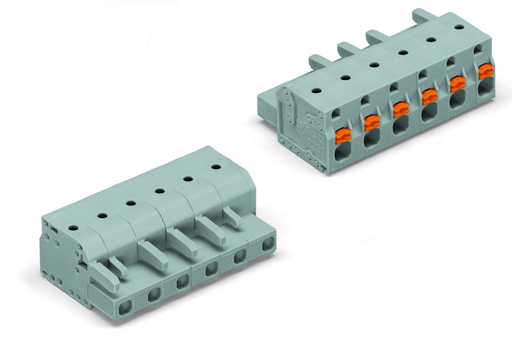

WAGO 2231-205/026-000

2231-205/026-000 WAGO 2231-205/026-000

WAGO 2231-205/026-000
Part # 2231-205/026-000
Condition New
Price: $ 7.03

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
1-conductor female plug
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-conductor female plug

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Push-in termination of solid and ferruled conductors
  • Integrated test ports for testing parallel to the conductor entry
  • Coding option available

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated voltage (III/2): 630 V
  • Rated surge voltage (III/2): 6 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 6 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group C): 300 V
  • Rated current UL (Use Group C): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 15 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group C): 300 V
  • Rated current CSA (Use Group C): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 10 … 11 mm / 0.39 … 0.43 inch
  • Pole No.: 5
  • Conductor entry direction to mating direction: 0 °

Physical Data

  • Pin spacing: 7.5 mm / 0.295 inch
  • Width: 36.5 mm / 1.437 inch
  • Height: 15 mm / 0.591 inch
  • Depth: 25.6 mm / 1.008 inch

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor
  • Mismating protection: No
  • Locking of plug-in connection: Without

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.214 MJ
  • Weight: 9.850 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454722715
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
