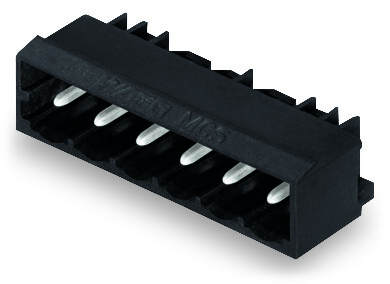

WAGO 231-468/001-000/105-604

231-468/001-000/105-604 WAGO 231-468/001-000/105-604

WAGO 231-468/001-000/105-604
Part # 231-468/001-000/105-604
Manufacturer Wago
GTIN 4050821004004
Condition New
Price: $ 3.13

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
THR male header; 1.2 x 1.2 mm solder pin; angled; Pin spacing 5 mm; 8-pole; black
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
THR male header; 1.2 x 1.2 mm solder pin; angled; Pin spacing 5 mm; 8-pole; black

Features

  • THR male headers for reflow soldering in SMT applications
  • Available in tape-and-reel packaging for automated pick-and-place PCB assembly
  • 1.2 x 1.2 mm solder pins allow nominal current up to 16 A, enhancing stability of shorter headers
  • Also available in bulk packaging for manual placement
  • Male headers may be mounted horizontally or vertically
  • With coding fingers

Approvals

  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CSA, LR 18677-25, C22.2

Specifications

Notes

  • Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 15 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Pole No.: 8

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 43.2 mm / 1.701 inch
  • Height: 10.8 mm / 0.425 inch
  • Height from the surface: 8.4 mm / 0.331 inch
  • Depth: 12 mm / 0.472 inch
  • Solder pin length: 2.4 mm
  • Solder pin dimensions: 1.2 x 1.2 mm
  • Plated through-hole diameter (THR): 1.7 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 0 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THR
  • Solder pin arrangement: Over the entire male connector (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Black
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 3.364 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4050821004004
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
