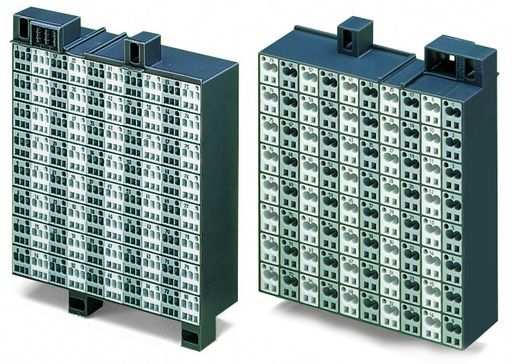

WAGO 726-821

726-821 WAGO 726-821

WAGO 726-821
Part # 726-821
Manufacturer WAGO
GTIN 4044918980128
Condition New
Price: $ 291.65

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MATRIX PATCHBOARD 80 POLE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Matrix patchboard marking 1-80 80 pole

Features

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-100850, EN 60998
  • DEKRA Certification B.V., CCA, NTR NL-7623, EN 60998
  • DEKRA Certification B.V., CSA, 1101143, C22.2 No. 158
  • UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection type (1): Page 1
  • Connection technology: CAGE CLAMP®
  • Number of connection points: 3
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Strip length: 8 … 10 mm / 0.31 … 0.39 inch
  • Pole No.: 80
  • Wiring direction: Front-entry wiring

Connection 2

  • Connection type 2: Page 2
  • Number of connection points 2: 2
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG

Physical Data

  • Width: 107.9 mm / 4.248 inch
  • Height: 132 mm / 5.197 inch
  • Depth: 36.5 mm / 1.437 inch

Mechanical Data

  • Marking: 1 … 80

Material Data

  • Color: Dark gray
  • Module color: White/gray
  • Fire load: 4.840 MJ
  • Weight: 439.200 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918980128
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
