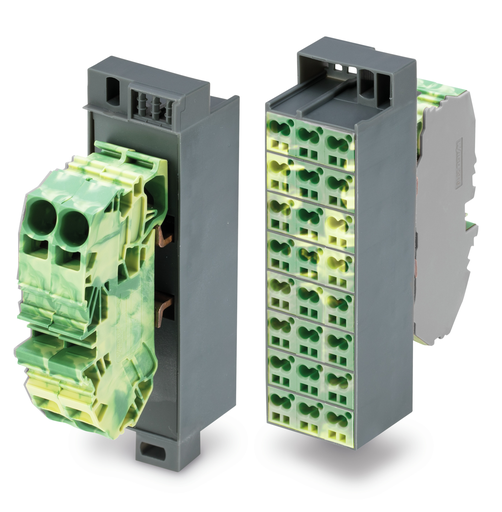

WAGO 726-672

726-672 WAGO 726-672

WAGO 726-672
Part # 726-672
Manufacturer WAGO
GTIN 4050821134619
Condition New
Price: $ 144.00

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
COMMON POTENTIAL MATRIX 2 SUPPLY BLK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Common potential matrix patchboard for earth conductor marking 1-24 with 2 input module incl. end plate

Features

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-100850, EN 60998
  • DEKRA Certification B.V., CSA, 1101143, C22.2 No. 158
  • UL International Germany GmbH, UL, E45172, UL 1059
  • DEKRA Certification B.V., CCA, NTR NL-7623, EN 60998

Specifications

Connection 1

  • Connection type (1): Page 1
  • Connection technology: Push-in CAGE CLAMP®
  • Number of connection points: 2
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
  • Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
  • Strip length: 16 … 17 mm / 0.63 … 0.67 inch
  • Wiring direction: Front-entry wiring

Connection 2

  • Connection type 2: Page 2
  • Connection technology 2: CAGE CLAMP®
  • Number of connection points 2: 2
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length 2: 8 … 10 mm / 0.31 … 0.39 inch

Physical Data

  • Width: 34.6 mm / 1.362 inch
  • Height: 132 mm / 5.197 inch
  • Depth: 80.7 mm / 3.177 inch

Mechanical Data

  • Marking: 1 … 24
  • Design: Slimline

Material Data

  • Color: Dark gray
  • Module color: Green-yellow
  • Fire load: 1.187 MJ
  • Weight: 264.490 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143623520
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
