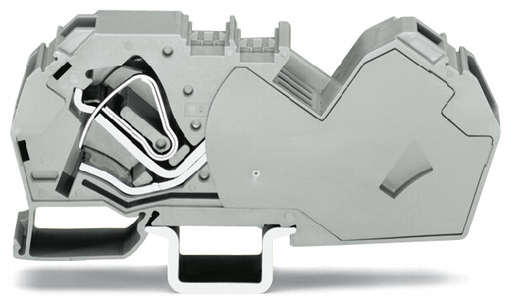

WAGO 785-601

785-601 WAGO 785-601

WAGO 785-601
Part # 785-601
Manufacturer WAGO
Condition New
Price: $ 20.82

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-P TB PASSAGE CLAMP GREY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Conductor through terminal block with integrated end plate

Features

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-101911, EN 60947
  • DEKRA Certification B.V., CSA, 1632550, C22.2 No. 158
  • DEKRA Certification B.V., CCA, NTR NL-7707, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Safety information 1: Only suitable for DIN 35 x 15 rail

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 8 kV
  • Rated current: 125 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 6 … 35 mm² / 8 … 2 AWG
  • Strip length: 23 mm / 0.91 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 16 mm / 0.63 inch
  • Height: 114 mm / 4.488 inch
  • Depth from upper edge of DIN-rail: 44.5 mm / 1.752 inch

Mechanical Data

  • Design: Angled
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 1.103 MJ
  • Weight: 86.615 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454400576
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
