WAGO 757-285/000-025

757-285/000-025 WAGO 757-285/000-025

WAGO 757-285/000-025
Part # 757-285/000-025
Manufacturer WAGO
GTIN 4045454478971
Condition New
Price: $ 298.41

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

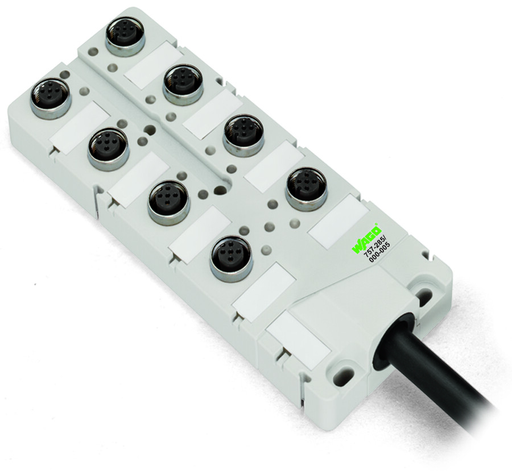

M12 SENSOR/ACTUATOR BOX 8 WAY/5P/25M
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
IP 67 sensor/actuator box 8-way 5 pole

Features

  • M12 sensor/actuator box, 8-way
  • 5‐pole (2 signals per contact)
  • Cable length: 5, 10 and 25 m
  • Green LED operating indicator
  • Yellow LED status indicator
  • incl. markers (10 pcs)
  • incl. M12 protective caps (2 pcs)

Approvals

  • UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

  • Contact resistance (max.): 0.01 Ω
  • Supply voltage: 10 … 30 VDC; Rated voltage: 32 V ~ rms
  • Current carrying capacity (signal connections): 2 A
  • Current carrying capacity (supply connections): 9 A
  • Rated value of electrical isolation: 500 V
  • Functionally separated potential groups: Kontakt/Kontakt
  • Insulation resistance: 1000 MΩ
  • Signal characteristic: PNP
  • Indicators: LED (A, B) yellow: Signal status (2 x per contact); LED (U) green: Sensor/actuator box status

Connection Data

  • Connection technology: inputs/outputs: 8 x M12 socket; 5-pole; incl. ground
  • Connection technology: trunk cable: 1 x Fixed connecting cable
  • Length of connecting cable: 25 m
  • Strip length: 100 mm / 3.94 inch
  • Wire colors: White, gray/pink, green, red/blue, yellow, white/green, gray, brown/green, pink, white/yellow, red, yellow/brown, black, white/gray, purple, gray/brown, green/yellow, brown, blue
  • Cable design: Wire cross-section: 0.34 mm²; Wire cross-section 2: 1 mm²

Physical Data

  • Width: 60 mm / 2.362 inch
  • Height: 26 mm / 1.024 inch
  • Depth: 152 mm / 5.984 inch

Mechanical Data

  • Mounting type: Screw mount

Material Data

  • Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
  • Halogen-free: Yes
  • Sheathed cable diameter: 9.7 mm
  • Bending radius: 10 x cable diameter (min.) for flexible application
  • Material properties of the connections: Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles
  • Sheath material: PUR
  • Sheathed cable color: Black
  • Encapsulation: Fully encapsulated with conformal coating (UL 94 V0)

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 80 °C
  • Surrounding air (operating) temperature (dynamic): -5 … +80 °C
  • Surrounding air (operating) temperature (static): -40 … +80 °C
  • Protection type: IP68
  • Note on protection type: 72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps
  • Pollution degree (5): 3 per VDE 0110
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: Per IEC 60068-2-27

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454478971
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
