WAGO 756-9701/050-000

756-9701/050-000 WAGO 756-9701/050-000

WAGO 756-9701/050-000
Part # 756-9701/050-000
Manufacturer Wago
Condition New
Price: $ 62.73

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

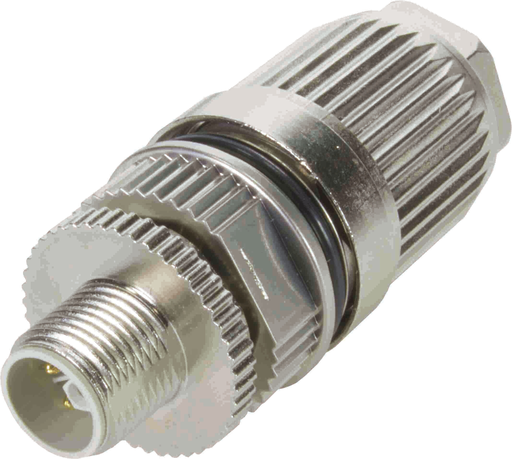

Fitted pluggable connector; 5-pole; M12 plug, straight; Pin penetration
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Fitted pluggable connector; 5-pole; M12 plug, straight; Pin penetration

Specifications

Technical Data

  • Connection type: M12 plug
  • Pole No.: 5
  • Cable connection direction to mating direction: 0 °
  • Connector interface coding (cable/adapter) 1 1: L-coded
  • Rated surge voltage: 1.5 kV
  • Contact resistance: 10 mΩ
  • Insulation resistance: 1000 MΩ

Connection Data

  • Connection type (1): Pin penetration technology
  • Solid conductor: 0.75 … 1.5 mm² / 18 … 16 AWG

Mechanical Data

  • Housing material: Zinc die casting
  • Tightening torque: 0.6 Nm
  • Weight: 84.700 g

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 85 °C
  • Protection type: IP65
  • Note on protection type: IP67 when mated; per IEC 60529
  • Pollution degree (5): 3
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: RO
  • GTIN: 4055144018400
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
