WAGO 756-5504/030-020

756-5504/030-020 WAGO 756-5504/030-020

WAGO 756-5504/030-020
Part # 756-5504/030-020
Manufacturer WAGO
GTIN 4044918974868
Condition New
Price: $ 25.12

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

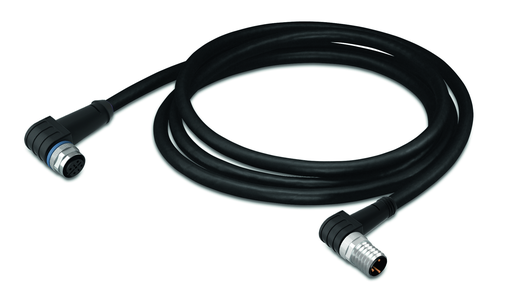

M12 SKT,ANG/M8 PLUG,ANG,3-P,2M
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Sensor/actuator cable both wire ends fitted with plug/socket 3 pole

Features

  • PUR, halogen-free
  • Suitable for drag chains
  • Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation.
  • Good chemical resistance.
  • Cable used: UL listed

Specifications

Technical Data

  • Connection type: M12 socket - M8 Plug
  • Pole No.: 3
  • Cable connection direction to mating direction: 90 °
  • Cable connection direction to mating direction (2): 90 °
  • Connector interface coding (cable/adapter) 1 1: A-coded
  • Cable length: 2 m
  • Operating voltage: AC/DC 60 V
  • Operating current: 4 A
  • Rated surge voltage: 1.5 kV

Mechanical Data

  • Bending cycles: 2 Mio.
  • Drag chain suitability: Yes
  • Sheathed cable color: Black
  • Sheathed cable diameter: 3.9 … 4.3 mm
  • Sheath material: Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
  • Halogen-free: Yes
  • Housing material: Polyurethane (PUR)
  • Contact material: CuSn
  • Contact plating: CuNi/Au
  • Tightening torque: 0.6 … 1 Nm
  • Weight: 69.000 g

Environmental Requirements

  • Surrounding air (operating) temperature (dynamic): -25 … +90 °C
  • Surrounding air (operating) temperature (static): -50 … +90 °C
  • Protection type: IP67
  • Pollution degree (5): 3 per VDE 0110
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918974868
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
