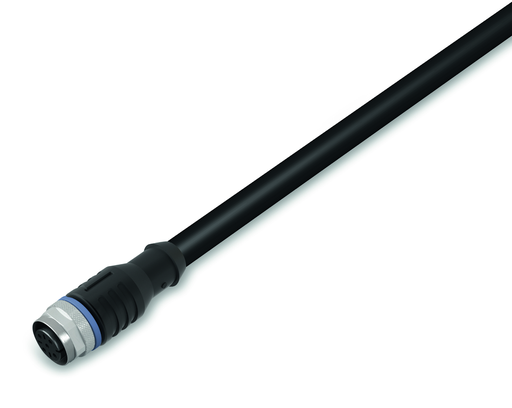

WAGO 756-5301/060-015

756-5301/060-015 WAGO 756-5301/060-015

WAGO 756-5301/060-015
Part # 756-5301/060-015
Manufacturer WAGO
GTIN 4045454724696
Condition New
Price: $ 30.00

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
M12 CBL,SKT,ST,5-P,1.5M,LEADS,SHLDM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Sensor/actuator cable fitted with one socket (with free wire end) 5 pole

Features

  • PUR, halogen-free
  • Suitable for drag chains
  • High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
  • High chemical resistance
  • Cable used: UL listed

Approvals

  • Underwriters Laboratories Inc., UL, E519602, UL 2238

Specifications

Technical Data

  • Connection type: M12 socket - Free end
  • Pole No.: 5
  • Connection point (shielded): Yes
  • Cable connection direction to mating direction: 0 °
  • Connector interface coding (cable/adapter) 1 1: A-coded
  • Cable length: 1.5 m
  • Operating voltage: 250 VAC/DC
  • Operating current: 4 A
  • Rated surge voltage: 1.5 kV
  • Conductor resistance: < 57 Ω/km

Mechanical Data

  • Bending cycles: 2 Mio.
  • Drag chain suitability: Yes
  • Sheathed cable color: Black
  • Sheathed cable diameter: 6.3 … 6.7 mm
  • Sheath material: Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
  • Halogen-free: Yes
  • Housing material: Polyurethane (PUR)
  • Contact material: CuSn
  • Contact plating: CuNi/Au
  • Tightening torque: 1 Nm
  • Weight: 110.000 g

Environmental Requirements

  • Surrounding air (operating) temperature (dynamic): -25 … +90 °C
  • Surrounding air (operating) temperature (static): -50 … +90 °C
  • Protection type: IP67
  • Pollution degree (5): 3 per VDE 0110
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: HU
  • GTIN: 4045454724696
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
