WAGO 756-3506/050-100

756-3506/050-100 WAGO 756-3506/050-100

WAGO 756-3506/050-100
Part # 756-3506/050-100
Manufacturer Wago
Condition New
Price: $ 198.25

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

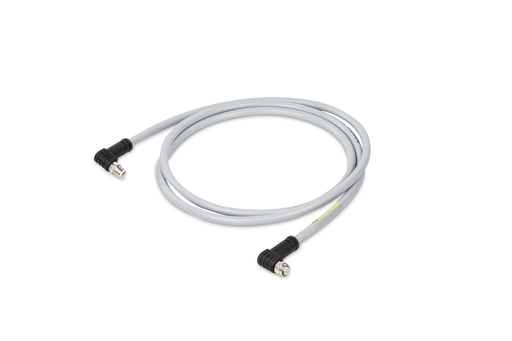

Power cable; M12L socket; angled; M12L plug; angled; 5-pole; Length: 10 m
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Power cable; M12L socket; angled; M12L plug; angled; 5-pole; Length: 10 m

Features

  • Strong resistance to microbes and hydrolysis
  • Good to very good weather resistance (UV and ozone)
  • High resistance against welding sparks
  • Excellent chemical and oil resistance
  • Silicon- and PVC-free
  • Free from paint-wetting impairment substances
  • Flexible at low temperatures

Approvals

  • Underwriters Laboratories Inc., UL, E519600, UL 2237

Specifications

Technical Data

  • Connection type: M12 socket - M12 plug
  • Pole No.: 5
  • Cable connection direction to mating direction: 90 °
  • Cable connection direction to mating direction (2): 90 °
  • Connector interface coding (cable/adapter) 1 1: L-coded
  • Cable length: 10 m
  • PLC Manufacturer: WAGO
  • Operating voltage: 63 VDC per IEC 60664-1
  • Operating current: 16 A
  • Rated surge voltage: 1.5 kV per IEC 61076-2-111
  • Contact resistance: 5 mΩ
  • Insulation resistance: 1000 MΩ
  • Conductor resistance: ≤13,7 Ω/km

Mechanical Data

  • Bending radius: Fixed: >4xØ; Flexible: >7.5xØ
  • Bending cycles: 10 Mio.
  • Drag chain suitability: Yes
  • Sheathed cable color: Gray
  • Sheathed cable diameter: 9.6 … 10.2 mm
  • Type code: LiF9YH-11Y-0B 5x1.5mm²
  • Conductor design: Bare copper wire (84 x 0.15 mm)
  • Conductor insulation: PP9Y (halogen-free)
  • Housing material: TPU/TPU, black (~ RAL 9005)
  • Tightening torque: 1 Nm
  • Weight: 1465.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 90 °C (UL max. +80 °C)
  • Surrounding air (operating) temperature (dynamic): -30 … +90 °C
  • Surrounding air (operating) temperature (static): -40 … +90 °C
  • Protection type: IP68
  • Pollution degree (5): 3 per IEC 60664-1
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Not packed
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143974288
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
