Features

• Strong resistance to microbes and hydrolysis
• Good to very good weather resistance (UV and ozone)
• High resistance against welding sparks
• Excellent chemical and oil resistance
• Silicon- and PVC-free
• Free from paint-wetting impairment substances
• Flexible at low temperatures

Approvals

• Underwriters Laboratories Inc., UL, E519600, UL 2237

Specifications

Technical Data

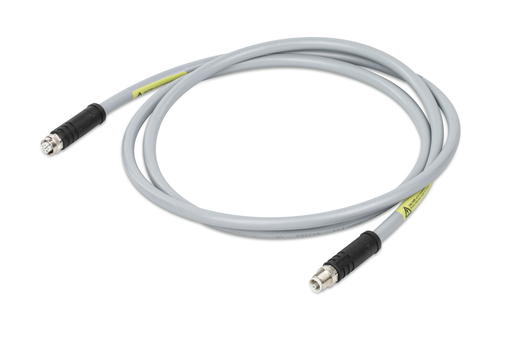

• Connection type: M12 socket - M12 plug
• Pole No.: 5
• Cable connection direction to mating direction: 0 °
• Cable connection direction to mating direction (2): 0 °
• Connector interface coding (cable/adapter) 1 1: L-coded
• Cable length: 2 m
• PLC Manufacturer: WAGO
• Operating voltage: 63 VDC per IEC 60664-1
• Operating current: 16 A
• Rated surge voltage: 1.5 kV per IEC 61076-2-111
• Contact resistance: 5 mΩ
• Insulation resistance: 1000 MΩ
• Conductor resistance: ≤13,7 Ω/km

Mechanical Data

• Bending radius: Fixed: >4xØ; Flexible: >7.5xØ
• Bending cycles: 10 Mio.
• Drag chain suitability: Yes
• Sheathed cable color: Gray
• Sheathed cable diameter: 9.6 … 10.2 mm
• Type code: LiF9YH-11Y-0B 5x1.5mm²
• Conductor design: Bare copper wire (84 x 0.15 mm)
• Conductor insulation: PP9Y (halogen-free)
• Housing material: TPU/TPU, black (~ RAL 9005)
• Tightening torque: 1 Nm
• Weight: 310.200 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 90 °C (UL max. +80 °C)
• Surrounding air (operating) temperature (dynamic): -30 … +90 °C
• Surrounding air (operating) temperature (static): -40 … +90 °C
• Protection type: IP68
• Pollution degree (5): 3 per IEC 60664-1
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Not packed
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143974370
• Customs tariff number Sales Organisation Germany: 85444290900
