Features

• PUR, halogen-free
• UL / CSA
• Suitable for drag chains
• Silicon- and CFC-free
• High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
• High chemical resistance
• Cable used: UL listed

Approvals

• Underwriters Laboratories Inc., UL, E519602, UL 2238

Specifications

Technical Data

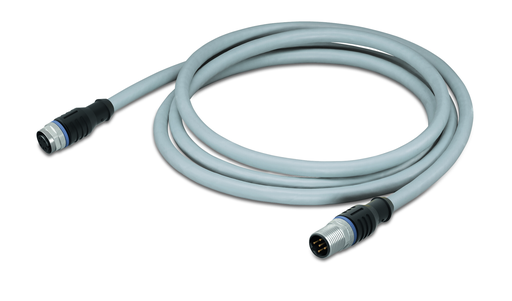

• Connection type: M12 socket - M12 plug
• Pole No.: 4
• Cable connection direction to mating direction: 0 °
• Cable connection direction to mating direction (2): 0 °
• Connector interface coding (cable/adapter) 1 1: A-coded
• Connector interface coding (cable/adapter) 2 1: A-coded
• Cable length: 2 m
• PLC Manufacturer: WAGO
• Operating voltage: 250 VAC/DC
• Operating current: 4 A
• Rated surge voltage: 2.5 kV
• Contact resistance: 10 mΩ
• Insulation resistance: 1000 MΩ
• Conductor resistance: ≤ 26 Ω/km

Mechanical Data

• Bending radius: 10 x cable diameter (min.) for flexible application
• Bending cycles: 4 Mio.
• Drag chain suitability: Yes
• Sheathed cable diameter: 6 … 6.4 mm
• Type code: Lif9YH-11YH 4x0.75 mm2
• Conductor design: Bare copper wire (40 x 0.15 mm)
• Conductor insulation: PP9Y (halogen-free)
• Housing material: TPU/TPU, black (~ RAL 9005)
• Tightening torque: 1 Nm
• Weight: 135.000 g

Environmental Requirements

• Surrounding air (operating) temperature (dynamic): -30 … +80 °C
• Surrounding air (operating) temperature (static): -30 … +80 °C
• Protection type: IP67
• Pollution degree (5): 3/2 per IEC 60664-1
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454126988
• Customs tariff number Sales Organisation Germany: 85444290900
