WAGO 756-3104/040-200

756-3104/040-200 WAGO 756-3104/040-200

WAGO 756-3104/040-200
Part # 756-3104/040-200
Manufacturer WAGO
GTIN 4045454772369
Condition New
Price: $ 82.97

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SUPPLY CBL,M12, PLG ANG 20M
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

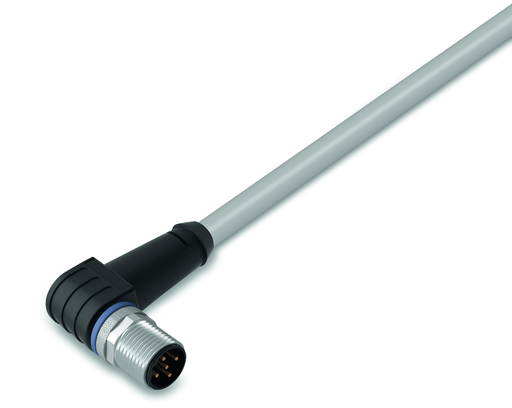

Power supply cable, right angle 20 m one end of cable is fitted

Features

  • PUR, halogen-free
  • UL / CSA
  • Suitable for drag chains
  • Silicon- and CFC-free
  • High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
  • High chemical resistance
  • Cable used: UL listed

Approvals

  • Underwriters Laboratories Inc., UL, E519602, UL 2238

Specifications

Technical Data

  • Connection type: M12 plug - Free end
  • Pole No.: 4
  • Cable connection direction to mating direction: 90 °
  • Connector interface coding (cable/adapter) 1 1: A-coded
  • Cable length: 20 m
  • PLC Manufacturer: WAGO
  • Operating voltage: 250 VAC/DC
  • Operating current: 4 A
  • Rated surge voltage: 2.5 kV
  • Contact resistance: 10 mΩ
  • Insulation resistance: 1000 MΩ
  • Conductor resistance: ≤ 26 Ω/km

Mechanical Data

  • Bending radius: 10 x cable diameter (min.) for flexible application
  • Bending cycles: 4 Mio.
  • Drag chain suitability: Yes
  • Sheathed cable diameter: 6 … 6.4 mm
  • Type code: Lif9YH-11YH 4x0.75 mm2
  • Conductor design: Bare copper wire (40 x 0.15 mm)
  • Conductor insulation: PP9Y (halogen-free)
  • Housing material: TPU/TPU, black (~ RAL 9005)
  • Tightening torque: 1 Nm
  • Weight: 9.999 g

Environmental Requirements

  • Surrounding air (operating) temperature (dynamic): -30 … +80 °C
  • Surrounding air (operating) temperature (static): -30 … +80 °C
  • Protection type: IP67
  • Pollution degree (5): 3/2 per IEC 60664-1
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454772369
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
