WAGO 756-1304/060-050

756-1304/060-050 WAGO 756-1304/060-050

WAGO 756-1304/060-050
Part # 756-1304/060-050
Manufacturer WAGO
GTIN 4045454791315
Condition New
Price: $ 63.54

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SBUS CBL, M12 PLG, ANG, 5M
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

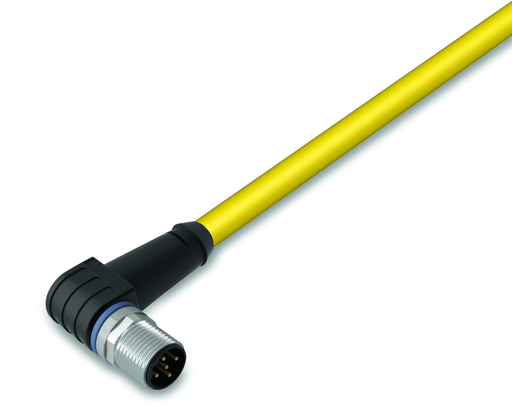

System bus cable, right angle 5 m one end of cable is fitted

Features

  • PUR, halogen-free
  • Silicon- and CFC-free
  • High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
  • High chemical resistance
  • Cable used: UL listed

Specifications

Technical Data

  • Connection type: M12 plug - Free end
  • Pole No.: 5
  • Cable connection direction to mating direction: 90 °
  • Connector interface coding (cable/adapter) 1 1: B-coded
  • Cable length: 5 m
  • PLC Manufacturer: WAGO
  • Operating voltage: 60 V
  • Operating current: 4 A
  • Rated surge voltage: 1.5 kV per IEC 61076-2-101
  • Contact resistance: 10 mΩ
  • Insulation resistance: 5000 MΩ
  • Conductor resistance: ≤ 145 Ω/km

Mechanical Data

  • Bending radius: 5 x cable diameter (min.)
  • Sheathed cable diameter: 6 mm
  • Type code: KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded
  • Shield: Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
  • Conductor design: Bare copper wire (26/7 AWG)
  • Conductor insulation: Zell-PE; Core Ø: 1.0 mm (max.)
  • Housing material: TPU/TPU, black (~ RAL 9005)
  • Contact material: CuZn
  • Contact plating: CuNi/Au
  • Material properties of the connections: Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton)
  • Mating cycles (max.): 100
  • Tightening torque: 1 Nm
  • Weight: 350.000 g
  • Color: Yellow

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 60 °C
  • Protection type: IP67
  • Pollution degree (5): 3/2 per IEC 60664-1
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454791315
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
